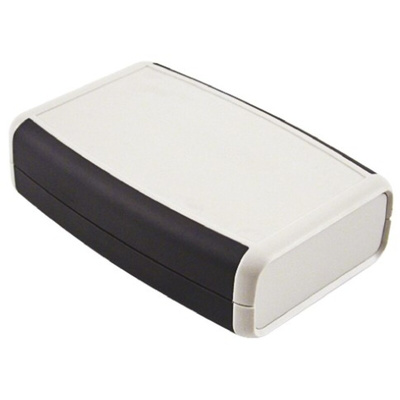

1553DGYBAT, Hammond 1553 Series Grey ABS Handheld Enclosure, Integral Battery Compartment, IP54, 147.24 x 89 x 25mm, Корпус

Hammond Handheld Enclosure, 147.24 (L) x 89 (W) x 25mm (H), ABS Construction, Grey Colour - 1553 Series - 1553DGYBAT

Want to protect sensitive electronic equipment when you're on the go? Pick up this handheld enclosure from Hammond. Compact dimensions of 147.24 (L) x 89 (W) x 25mm (H) mean it's easy to carry when you're working in the field. The unit's integral battery compartment makes cell storage a doddle so you're not tied to a mains electricity supply. Thanks to internal PCB mounting bosses, installing circuit boards is a breeze. A removable front panel makes access simple and swift, so this enclosure's handy for jobs that need constant assembly or dismantling.

Features & Benefits

• Light 107g weight means it's easy to handle
• Inbuilt recess lets you add a keypad to input data on the move
• Robust ABS material withstands abrasion and impacts without a scratch
• Peripheral soft plastic grip makes it comfortable to hold

Applications

• Communication equipment
• Measuring and monitoring devices
• Medical apparatus

Is this enclosure protected from moisture?

Yes. It has an IP54 rating, which means it's protected from dust and water sprays from all directions.

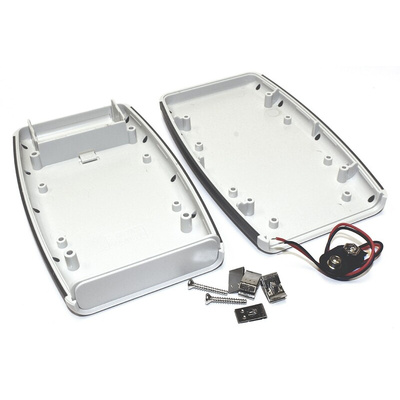

Soft Sided moulding with PCB Standoffs in lid and base. Recessed top cover for membrane keypad or label

1553 BAT Data Sheet

Datasheet

Datasheet - 1553DGYBAT
