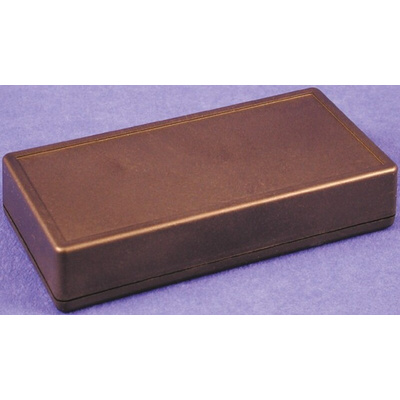

1599RFIKBK, Hammond 1599 Series Black Flame Retardant ABS Handheld Enclosure, IP54, 220 x 140 x 40.5mm, Корпус

RFI Shielded Hand Held Cases

Moulded with an engineered stainless steel fibre compound and flame retardant ABS plastic (material carries a UL flammability rating of 94V-0)
Better shielding properties due to the depth of the shielding (absorption)
Shielding attenuation of approximately 60dB
Recommended for low voltage DC power only
2-piece lap joint construction
Designed to meet IP54
Extra deep top and shallow base sections
Recessed area on top of case for keypads/displays etc
Base with moulded knockouts for wall mounting
Top and base have 6 bosses for PCB mounting
Tops have vertical card guides
Lid is secured with Philips machine screws, threaded into tapped integral brass bushings, ideal for repetive assembley and disassembley

Caution

Conductive plastic is NOT an insulator - these enclosures must be treated like a metal enclosure.
Conductive plastic will act as a heating element - any significant current flow will cause the plastic to heat and produce smoke.

PCB Stand offs moulded into base and lid. Keyhole Knockout on rear for easy wall mounting.Top cover is recessed for membrane display or keypad.

Standards

Material Flamability Rating: UL94-V0

1599K Data Sheet

Datasheet
