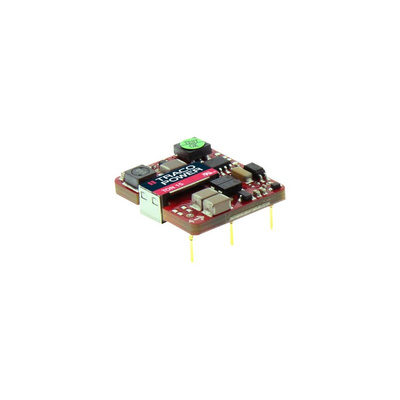

TON 15-2410, TRACOPOWER TON 15 DC-DC Converter, 3.3V dc/ 3.5A Output, 18 → 36 V dc Input, 15W, Through Hole, +85°C Max Temp, Преобразователь

Traco 15W Open Frame Single Output Regulated Isolated DC-DC Converter - TON15 Series

15W open frame single output regulated isolated DC-DC converters with a compact design, wide input voltage range and built-in input and output filters. Typical applications for these regulated isolated DC-DC converters include distributed power systems, instrumentation and industrial electronics.

Ultra-compact size
Wide input range 2:1
2250Vdc input / output isolation
Cost efficient open frame design with industry standard pin out
Input filter to meet EN55022 Class A
Under voltage lockout
Remote on / off
Indefinite short circuit protection
Output voltage adjustment ±10%
Extended operating temp range –40° to +85°C

Note

Operating temperature is with derating of 3% per °C above 70 °C.
MTBF to MIL-HDBK-217F, at 25°C
Suitable common mode chokes:
All models: L1 choke see stock number 745-1196
L2 choke for TON 15-24xx: see stock number 745-1180
L2 choke for TON 15-48xx: see stock number 745-1171

Standards

UL 60950-1, EN 60950-1, IEC 60950-1

Approvals

CB, cULus
