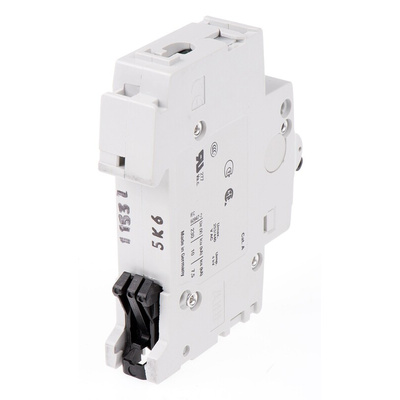

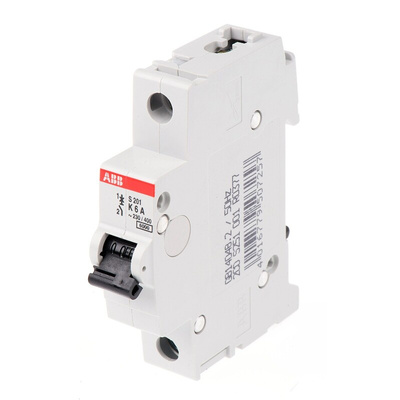

2CDS251001R0377 S201-K6, ABB System Pro M Compact S200 MCB, 1P, 6A Curve K, 253V AC, 72V DC, 6 kA Breaking Capacity

ABB Miniature Circuit Breaker, DIN Rail Mount, 2.8 N.m - S201-K6

The is part of the System pro M compact S200 series of miniature circuit breakers. These breakers are designed to be current limiting, ensuring safety in various applications. They incorporate two distinct tripping mechanisms: a delayed thermal tripping mechanism for overload protection and an electromechanic tripping mechanism for short circuit protection. Available in different characteristics (B, C, D, K, Z), configurations (1P, 1P+N, 2P, 3P, 3P+N, 4P), and rated currents (up to 63A), these MCBs comply with international standards (IEC/EN 60898-1, IEC/EN 60947-2, UL1077). They find use in residential, commercial, and industrial settings. Additionally, the S200 series allows for bottom-fitting auxiliary contacts, saving valuable space

Features & Benefits

• Ensures safe operation by limiting current during faults. This reduces the risk of damage to downstream equipment and prevents electrical hazards
• Delayed thermal tripping mechanism protects against overloads, preventing excessive current flow
• Electromechanic tripping mechanism rapidly disconnects the circuit during short circuits, enhancing safety
• High breaking capacity (Up to 6 kA) allows handling of faulty currents without compromising safety

Applications

• Used in homes for circuit protection
• Suitable for offices, shops, and small businesses
• Deployed in factories, warehouses, and manufacturing facilities

Can I use the ABB S201-K6 in my home circuit?

Yes, the S201-K6 is suitable for residential applications, complying with safety standards.

What is the breaking capacity of this circuit breaker?

The S201-K6 can handle up to 6 kA at 230/400 V AC.

Can I add auxiliary components to this breaker?

Yes, the bottom-fitting auxiliary contact allows you to expand functionality while saving space.

Standards

IEC/EN60947-2

ABB System Pro M Single & Double Pole MCB's

Note

The Classic & System pro M product cannot be intermixed and do not share common accessories. System pro M products can only be fitted to new style Protecta distribution boards,see typically stock no. 539-1553.
