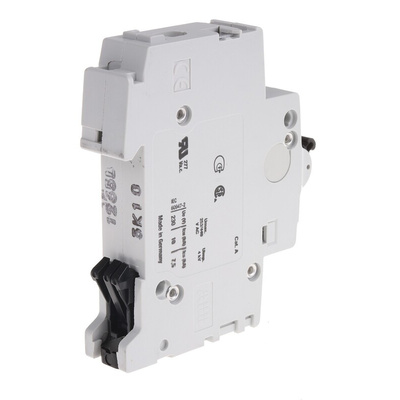

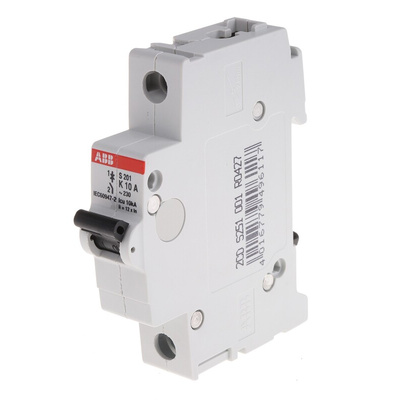

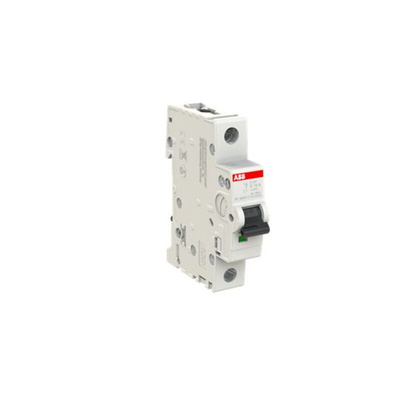

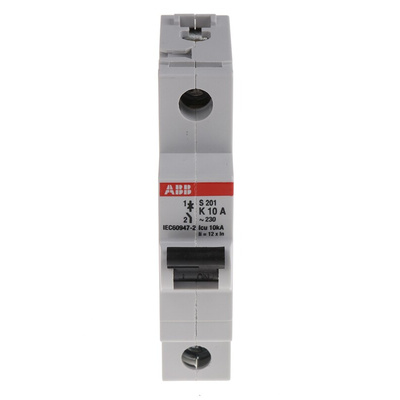

2CDS251001R0427 S201-K10, ABB System Pro M Compact S200 MCB, 1P, 10A Curve K, 253V AC, 72V DC, 6 kA Breaking Capacity

ABB MCB, 6kA Breaking Capacity, IP20 Rating - S200 Series - 2CDS251001R0427 S201-K10

Add this MCB from ABB to your distribution board to help safeguard an industrial circuit. It has a thermal trip to detect overloads and an electromechanical mechanism to protect against short circuits to minimise damage from electrical faults. As the unit has a type K trip characteristic, it breaks the circuit when loads between 8 and 12 times the rated current are detected. A slight delay minimises tripping when inrush currents occur. This makes it suitable for use with inductive loads and motors that draw a lot of power when they're first switched on.

Features & Benefits

• Suitable for AC or DC input voltages for flexibility
• Wide operating temperature range between -25°C and +55°C for use in harsh conditions
• Compatible with bottom-fitting auxiliary contacts to save space on your DIN rail
• Wide terminal opening to accommodate cable sizes up to 35mm²

Applications

• Motor control
• Industrial automation
• Marine industry
• HVAC installations
• Facilities management

Does this MCB have contact position indicators?

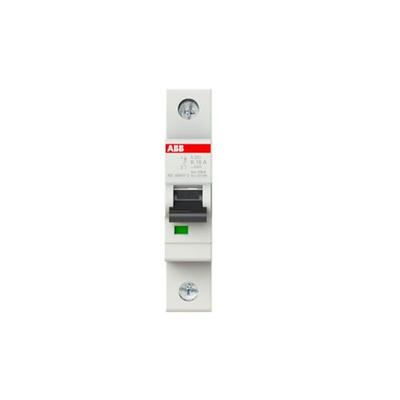

Yes. This MCB has an indicator underneath the toggle. For clarity, it shows red for on and green for off.

Standards

IEC/EN60947-2

ABB System Pro M Single & Double Pole MCB's

Note

The Classic & System pro M product cannot be intermixed and do not share common accessories. System pro M products can only be fitted to new style Protecta distribution boards,see typically stock no. 539-1553.
