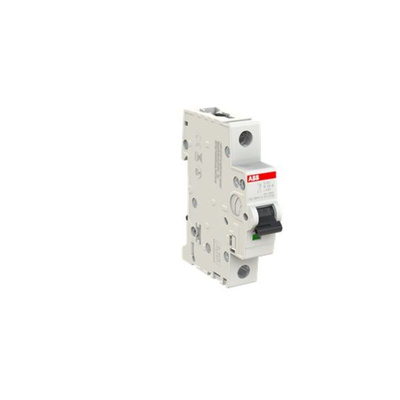

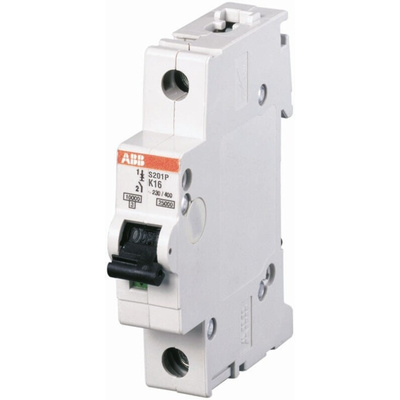

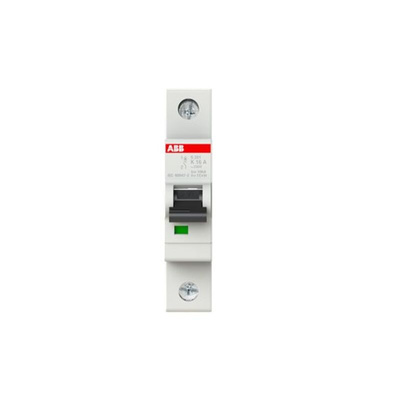

2CDS251001R0467 S201-K16, ABB System Pro M Compact S200 MCB, 1P, 16A Curve K, 253V AC, 72V DC, 6 kA Breaking Capacity

Type K Single Pole 6kA - Classic

Type K characteristics have been specifically designed for the protection of motor control circuits and items used within them. It has a very sensitive thermal curve, combined with a magnetic setting of 8 times the normal input current (In), which is high enough to avoid in-rush nuisance tripping, but provides good protection against over current conditions.

DIN rail mounting
Complies with BS EN 60898
Operating temperature range of -25°C to +55°C
Standard 17.5mm width
Max. operating voltage: 440Vac, 60Vdc

Note

The Classic & System pro M product cannot be intermixed and do not share common accessories. System pro M products can only be fitted to new style Protecta distribution boards.

ABB MCB, AC or DC Input Voltage, DIN Rail Mounting - S200 Series - S201-K16

Reduce the risk of power spikes damaging your industrial equipment with this MCB from ABB. The type-K breaker is an ideal choice for machinery that experiences inrush currents or high inductive loads, thanks to its ability to trip currents between 8 and 12 times its 16A rating. For comprehensive safety, the unit includes a delayed thermal tripping mechanism for overload protection, as well as an electromagnetic tripping feature to handle short circuits. Its contact position indicator allows for quick and convenient visual inspection of status.

• Insulated housing helps protect against electric shocks
• Low power loss of 2W, making it energy-efficient
• Electrical endurance of up to 20,000 cycles for an extended service life
• Snaps onto a standard 35mm DIN rail for quick and easy installation
• Screw terminals hold conductors securely to reduce time spent on wiring and maintenance

Applications

• Automotive manufacturing
• Power generation plants
• Mining and mineral processing
• Oil and gas industries

How many poles does this MCB have?

This miniature circuit breaker has one pole, so can break a single circuit.

Can this MCB withstand industrial use?

Yes, this device withstands vibration and shock, so it's a good choice for harsh environments.

Standards

IEC/EN60947-2

ABB System Pro M Single & Double Pole MCB's

Note

The Classic & System pro M product cannot be intermixed and do not share common accessories. System pro M products can only be fitted to new style Protecta distribution boards,see typically stock no. 539-1553.

Datasheet - 2CDS251001R0467 S201-K16

Catalogue - Miniature Circuit-Breakers

End of life instructions S200, S200L, SZ200, SC200, S200M

Product Environmental Profile
