1SNA607002R0700, ABB, 24V ac/dc SPNO Interface Relay Module, DIN Rail

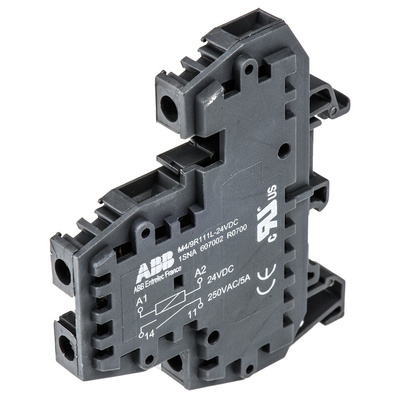

ABB Interface Relay Module

The ABB interface relay module is an innovative, ultra-compact, electromechanical device equipped with a 24VAC/DC coil voltage and SPNO contact configuration. This narrow design interface relay works as a coupling element used to send control signals to and from a PLC, PC or a field bus system at the sensor-actuator level. The device has many approvals and hence, it can be used for many applications around the world. It offers a high-density solution for smaller electrical cabinets and other industrial applications, thus optimising your panel installation. This electromechanical relay module has a small footprint that makes it ideal for applications where space saving is essential.

Features and Benefits

SPNO 1NO contact configuration with relay output from 10mA to 5A
Rated supply voltage of 24VAC and 24VDC
Rising clamp technology
Takes the place of standard terminal and relay unit
Saves wiring and space
Screw clamp type terminal connection
Operating temperature ranges between -20°C and 70°C
With or without lamp indication

Applications

Industrial process control
Motor control applications
Electrical isolation
Signal matching between electronic controls

Certifications

IP20 rated
UL94 approval
CEI 947-7-1
CEI 947-1
CEI 1131-2
CEI 60664-1

Approvals

UL recognised component for Canada & US.

UL RECOGNISED FOR CANADA E72667

Relay Interface Data Sheet
