DET3TC 3 Pole Earth Tester

3 pole earth tester for measuring the resistance of earth rods and associated installations.,An ICLAMP selective earth clamp is available separately, and when used with the DET3TC allows the testing of an earth rod without the need for disconnection from the system.

Resistance range 0.01 to 2000 ohms auto ranging
Choice of 2 or 3 terminal measurements
Simple one button operation
Superior noise rejection to 40V pk-pk
Measures earth voltage 0 – 300V
Automatic P spike & C spike check
Clamp input for no-disconnect testing (requires ICLAMP)
Earth current range (with ICLAMP up to 19.9A)

Standards

EN61010-1 CAT IV 150V & CAT III 300V

Supplied with

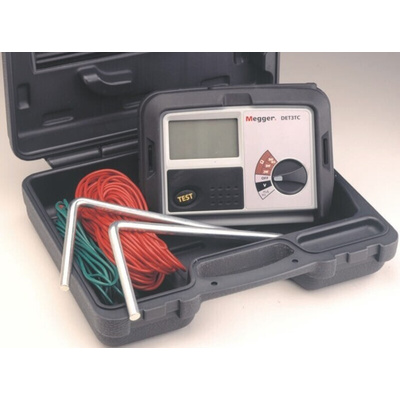

2 earth test stakes, 3 connection leads, 8 x AA alkaline batteries, hard carry case, quick start guides, user guide on CD

Megger Earth & Ground Resistance Tester

The Megger earth and ground resistance tester measure a 2kΩ absolute maximum resistance and having the CAT IV 100 V safety category. This 3-pole tester is used to measure the resistance of earth rods and associated installations. An ICLAMP selective earth clamp is available separately and when used with the DET3TC, allows the testing of an earth rod without the need to disconnect from the system. The ground tester can measure resistance between 0.01Ω and 2000Ω and earth voltages up to 100V. To allow accurate testing in noisy environments, the instrument is capable of rejecting noise of up to 40V peak to peak. The tester is powered by Eight AA batteries, the status of these batteries is shown using a graph on the LCD.

Features and Benefits

2 and 3 point testing
Automatic C and P spike checking
ART (Attached Rod Technique) testing capability with DET3TC
Calibration test certificate included
Choice of digital or analogue display
Complete with leads, stakes and rugged carry case
Simple one-button operation
Warning indicators prevent test failure

Certifications

EN61557-1
EN61557-5
IEC61010-1
IEC61326-1
IP54 rated
