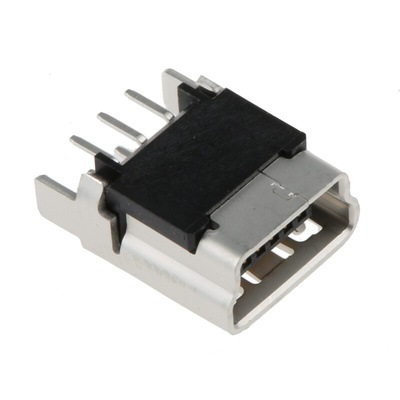

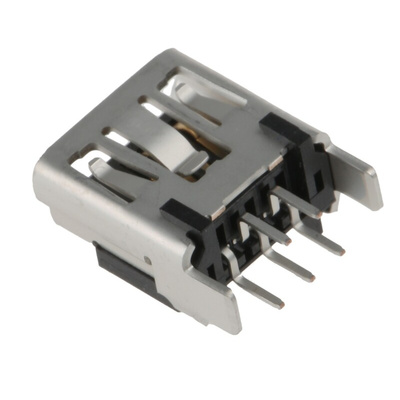

500075-1517, Molex Straight, Through Hole, Socket Type B 2.0 USB Connector, Разъем

USB On-The-Go (OTG)

These Molex range of USB OTG (On-the-Go) connectors are compatible with the On-The-Go supplement (Rev. 1.0) to the USB 2.0 specification. The needs of various portable and mobile equipment are met by these Molex OTG USB connectors by operating at speeds up to 480 Mbps coupled with a compact light-weight design.

Ranging from male to female, the mini USB connector also comes in USB types A, AB B and Mini B. They feature a 5-pin pitch, this reduces the mounting space required making them very versatile.

Features and Benefits

• They are about one-eighth the size of a standard USB-B connector Excellent RFI/EMI performance.
• 5-pin design (one ID pin).
• Through-hole and SMT versions available.
• Cable assemblies available.
• Voltage Rating of 30V.
• Current Rating of 1A.
• Expected Life Cycles are 5000.

Molex Type B 2.0 USB Connector, 1A Current Rating, 30V Voltage Rating - On-The-Go Series - 500075-1517

Use this connector from Molex to create a USB data transfer channel for your computers and multimedia devices. It's easy to install – simply solder it onto the printed circuit board (PCB) of your appliance using through-hole mounting. This provides a strong bond for setups where high mechanical stress is likely. The unit's copper alloy contacts are highly conductive, so achieve a reliable connection, while gold plating makes them resistant to corrosion for long-term performance. To prevent misalignment and ensure quick and accurate assembly, this connector is polarised to both the PCB and its mating part.

• Wide operating temperature range of -40° to +85°C for reliable industrial use
• Voltage rating of 30V suitable for low-voltage applications
• Integrated PCB locator to make assembly straightforward
• PCB retention feature ensures a secure connection
• Light weight of 0.52g for easy handling

Applications

• Communication systems
• Household appliances
• Office equipment

What's the data transfer rate of this connector?

This connector has a data transfer speed of 480Mbps. This makes it suitable for quick transmission of high volumes of data.

Molex USB Connectors

500075-1517 Datasheet

Line Drawing - 500075-1517

Specification Sheet - 500075-1517
