16000003-2, Lapp 3 Core 1.5 mm² Mains Power Cable, Grey Polyvinyl Chloride PVC Sheath 100m, 19 A 500 V

5154281
Номер производителя: 16000003-2Производитель: Lapp
Цена за 1 катушку (100 метров)
47535.00 руб. (С НДС) *

Срок поставки: 4-6 недель

+

* УТОЧНЯЙТЕ ВОЗМОЖНОСТЬ, ЦЕНУ И СРОК ПОСТАВКИ, В СВЯЗИ С ОГРАНИЧЕНИЕМ ЭКСПОРТА ТОВАРОВ ИЗ СТРАН ЕС И ВЕЛИКОБРИТАНИИ

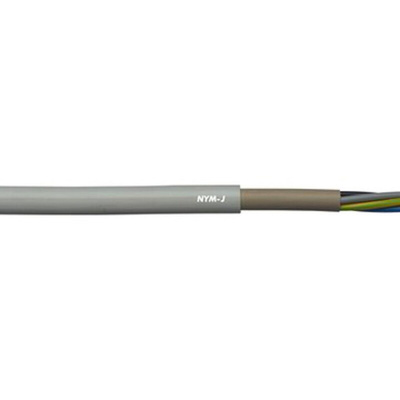

NYM-J installation cable

From Lapp, this NYM-J cable is a widely-used installation cable that is often found in domestic and commercial electrical wiring. The PVC sheathed cable is designed for use in plaster, brickwork and concrete, and is a common standard in construction and maintenance.

The cable is bare copper single core with PVC with a filling compounds over the core assembly. The PVC sheath is flame retardant and robust, allowing the cable to be used in dry, damp and wet interiors, and even outdoors if protected from direct sunlight.

The cable should not be used in direct embedding in vibrated or compressed concrete.

Features and Benefits

• Bare copper conductors
• PVC-based outer sheath
• Above, below, flush and recess routing

Applications

NYM-J cable is often used in fixed installations in domestic and commercial environments, typically when wiring electrical sockets to the mains power. It is similar to NYY-J cable which is used for the same applications, but is also suitable for outdoor use.

Standards

IEC 60332-1-2, VDE, CE

Техническая спецификация
pdfInstallation Cable NYM-J Data Sheet
pdfCables Selection Guide
Американский размер проводов:
15 AWG
Внешний диаметр:
8.4мм
Встречающиеся стандарты:
Euroclass Eca
Длина:
100м
Жилы:
1.38 мм
Количество ядер:
3
Материал изоляции:
ПВХ
Материал оболочки:
Polyvinyl Chloride PVC
Материал проводника:
Голая медь
Номинал тока:
19 A
Номинальное напряжение:
500 В
Площадь поперечного сечения:
1.5 мм²
Рабочая температура - максимальная:
+60°C
Рабочая температура - минимальная:
-5°C
Размеры нитей:
1.38 мм
Сопротивление проводника:
12.1 Ом/км
Тип:
NYM-J
Тип проводника:
Solid
Характеристика горения:
Flame Retardant
Цвет оболочки:
Серый
