16000063, Lapp 5 Core Power Cable, 2.5 mm², 50m, Grey PVC Sheath, 25 A, 500 V

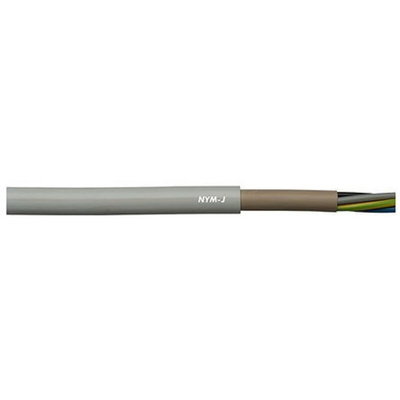

NYM-J installation cable

From Lapp, this NYM-J cable is a widely-used installation cable that is often found in domestic and commercial electrical wiring. The PVC sheathed cable is designed for use in plaster, brickwork and concrete, and is a common standard in construction and maintenance.

The cable is bare copper single core with PVC with a filling compounds over the core assembly. The PVC sheath is flame retardant and robust, allowing the cable to be used in dry, damp and wet interiors, and even outdoors if protected from direct sunlight.

The cable should not be used in direct embedding in vibrated or compressed concrete.

Features and Benefits

• Bare copper conductors
• PVC-based outer sheath
• Above, below, flush and recess routing

Applications

NYM-J cable is often used in fixed installations in domestic and commercial environments, typically when wiring electrical sockets to the mains power. It is similar to NYY-J cable which is used for the same applications, but is also suitable for outdoor use.

Standards

IEC 60332-1-2, VDE, CE

LAPP Power Cable, 2000V AC Test Voltage, PVC Jacket - NYM-J Series - 16000063

When electrical installations are up against the wall, bring in this power cable from LAPP. Its PVC insulation and outer jacket make it tough and durable, so it safely distributes supplies around buildings when it's routed in and on plaster, masonry and concrete. The cable has a nominal voltage of 300V for TN earthing and 500V for three-phase systems, enabling its use in domestic and commercial applications.

Features & Benefits

• Flame-retardant material helps to stop flames from spreading
• Bare copper wires provide dependable power in harsh environments
• Industry-standard colour coding on the cores for a straightforward connection
• Filling compound to bolster ruggedness and moisture resistance, making it suitable for damp interiors

Applications

• Construction industry
• Facilities maintenance
• Electrical engineering
• Building infrastructure

How flexible is this power cable?

The unit's minimum bend radius of four times its outer diameter of 11.5mm allows for flexible routing in fixed installations.
