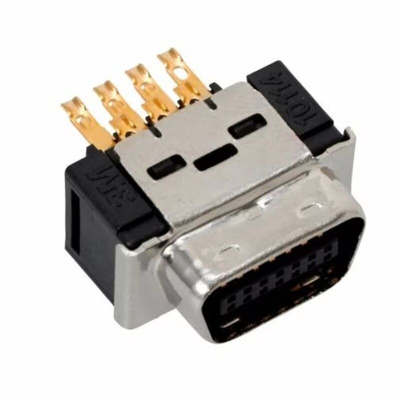

10114-3000PE, 3M 101 14 Way Cable Mount D-sub Connector Plug, 2.54mm Pitch, Разъем

3M I/O Shielded Solder Plugs

From 3M, these 101 Series Mini D Ribbon (MDR) Wiremount I/O shielded Connectors have solder cup terminations. These 101 Series Mini D Ribbon Connectors have a Wiper-on -Wiper contact that provides reliable repetitive mating, as well as featuring robust glass reinforced insulation.

Features and Benefits

• Accepts discrete wires 24-30AWG
• Reliable connection

Available in this range:

• 515-7460 is a 14 pin Cable Mount MDR Connector
• 515-7476 is a 20 pin Cable Mount MDR Connector
• 515-7498 is a 26 pin Cable Mount MDR Connector
• 515-7505 is a 36 pin Cable Mount MDR Connector
• 515-7511 is a 50 pin Cable Mount MDR Connector
• 749-4929 is a 40 pin Cable Mount MDR Connector

What are D-Sub Connectors used for?

D-sub connectors are used in a variety of electronics applications, and are frequently found in heavy duty computing systems such as in hospital equipment and industrial computers. They are also common in personal and office computing systems.

They are a robust connector that offer a secure connection, meaning they are suitable for use in more challenging environments.

Why choose 3M?

3M is a trusted name in connector and wiring solutions, providing high quality cables, connectors and accessories. From industrial computing to domestic applications, 3M provides the reliable and versatile product range you need.

3M D-Sub Connector, Gold-and-Nickel-Plated Contacts, -55°C to +105°C Operating Temperature Range - 101 Series - 10114-3000PE

Looking to link peripherals securely? Choose this 3M D-sub connector. The male 14-pin plug mounts to any wire between 30 and 24AWG. This means it's widely compatible with standard cables and mates with a 14-way female socket on your computer or PCB. Its solder cup-style terminations make it quick and easy to connect without specialist tools. Thanks to the component's hardwearing wiper-on-wiper contacts, you can expect a reliably robust electrical connection, even with repeated matings.

Features & Benefits

• Gold-and-nickel plating on contacts means you get high-quality signal transfers
• Glass-reinforced insulation slashes your risk of shocks caused by touching live elements
• UL 94-V0 approved, so it's made of flame-retardant materials that won't contribute to the spread of fire

Applications

• R&D laboratories
• Industrial computer networks
• Automated machinery

What temperatures can I use this connector in?

A broad operating temperature range of -55°C to +105°C makes it a safe bet for use in tough settings.

Standards

MIL-G-45204

Mini Delta Ribbon (MDR)

Cable mount plugs and PCB mount receptacles with pre-loaded ribbon contacts for long life
Finger releasable latching backshells for cable mounting applications

A Mini Delta Ribbon (MDR) system designed for high density I/O applications on a 1.27mm pitch.

14 way D-sub plug - data sheet
