10120-3000PE, 3M 101 20 Way Cable Mount D-sub Connector Plug, 2.54mm Pitch, Разъем

3M I/O Shielded Solder Plugs

From 3M, these 101 Series Mini D Ribbon (MDR) Wiremount I/O shielded Connectors have solder cup terminations. These 101 Series Mini D Ribbon Connectors have a Wiper-on -Wiper contact that provides reliable repetitive mating, as well as featuring robust glass reinforced insulation.

Features and Benefits

• Accepts discrete wires 24-30AWG
• Reliable connection

Available in this range:

• 515-7460 is a 14 pin Cable Mount MDR Connector
• 515-7476 is a 20 pin Cable Mount MDR Connector
• 515-7498 is a 26 pin Cable Mount MDR Connector
• 515-7505 is a 36 pin Cable Mount MDR Connector
• 515-7511 is a 50 pin Cable Mount MDR Connector
• 749-4929 is a 40 pin Cable Mount MDR Connector

What are D-Sub Connectors used for?

D-sub connectors are used in a variety of electronics applications, and are frequently found in heavy duty computing systems such as in hospital equipment and industrial computers. They are also common in personal and office computing systems.

They are a robust connector that offer a secure connection, meaning they are suitable for use in more challenging environments.

Why choose 3M?

3M is a trusted name in connector and wiring solutions, providing high quality cables, connectors and accessories. From industrial computing to domestic applications, 3M provides the reliable and versatile product range you need.

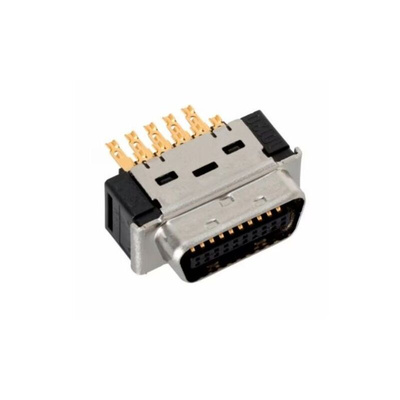

3M D-Sub Connector, Male Gender, Cable Mounting - 101 Series - 10120-3000PE

Get your components communicating with this D-sub connector from 3M. It uses the solder cup termination method, so you can be sure of a reliable connection. Copper alloy contacts with gold-over-nickel plating strengthen this link to deliver top-notch conductivity. The unit's glass-reinforced polyester provides the heavy-duty insulation needed in challenging applications. Installation is easy thanks to the pre-loaded ribbon contacts. To prove good things come in small packages, you can connect 20 contacts to this single male plug.

Features & Benefits

• Housed in steel, it’s strong enough for use in industrial environments
• Compact dimensions of 22 (L) x 9.1 (W) x 19.3mm (D) fit neatly into busy setups
• Withstands extreme temperatures from -55°C to +105°C

Applications

• Hospital equipment
• Industrial manufacturing
• Personal computing

What type of wires does the D-sub connector accept?

This type of connector takes 30 to 24AWG hook up wires, so is widely compatible.

Standards

MIL-G-45204

Mini Delta Ribbon (MDR)

Cable mount plugs and PCB mount receptacles with pre-loaded ribbon contacts for long life
Finger releasable latching backshells for cable mounting applications

A Mini Delta Ribbon (MDR) system designed for high density I/O applications on a 1.27mm pitch.

Datasheet
