10150-3000PE, 3M Male 50 Pin Straight Cable Mount SCSI Connector 2.54mm Pitch, Solder, Разъем

3M I/O Shielded Solder Plugs

From 3M, these 101 Series Mini D Ribbon (MDR) Wiremount I/O shielded Connectors have solder cup terminations. These 101 Series Mini D Ribbon Connectors have a Wiper-on -Wiper contact that provides reliable repetitive mating, as well as featuring robust glass reinforced insulation.

Features and Benefits

• Accepts discrete wires 24-30AWG
• Reliable connection

Available in this range:

• 515-7460 is a 14 pin Cable Mount MDR Connector
• 515-7476 is a 20 pin Cable Mount MDR Connector
• 515-7498 is a 26 pin Cable Mount MDR Connector
• 515-7505 is a 36 pin Cable Mount MDR Connector
• 515-7511 is a 50 pin Cable Mount MDR Connector
• 749-4929 is a 40 pin Cable Mount MDR Connector

What are D-Sub Connectors used for?

D-sub connectors are used in a variety of electronics applications, and are frequently found in heavy duty computing systems such as in hospital equipment and industrial computers. They are also common in personal and office computing systems.

They are a robust connector that offer a secure connection, meaning they are suitable for use in more challenging environments.

Why choose 3M?

3M is a trusted name in connector and wiring solutions, providing high quality cables, connectors and accessories. From industrial computing to domestic applications, 3M provides the reliable and versatile product range you need.

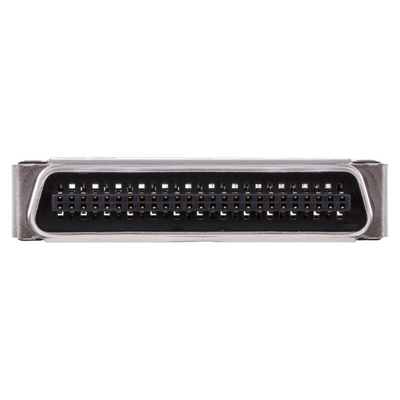

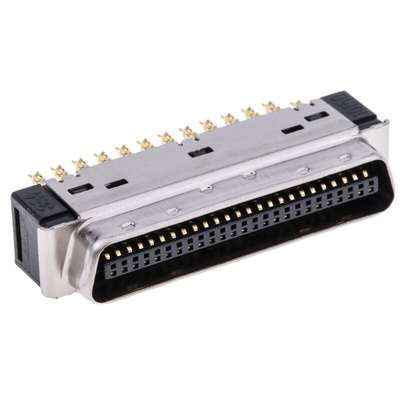

3M Male Straight Cable Mount SCSI Connector, 50 Way, 2.54mm Pitch - 101 Series - 10150-3000PE

Use this 50 pin small computer systems interface (SCSI) connector from 3M to link computers to peripheral devices. It features mini delta ribbon (MDR) connector technology, so it's a versatile choice that's compatible with a wide range of equipment. A pitch of 2.54mm means the unit's contacts can connect without touching each other, which offers improved electrical safety. It also has a steel housing for impact resistance and protection from electromagnetic interference. You'll find devices like this used in smaller domestic to industrial applications.

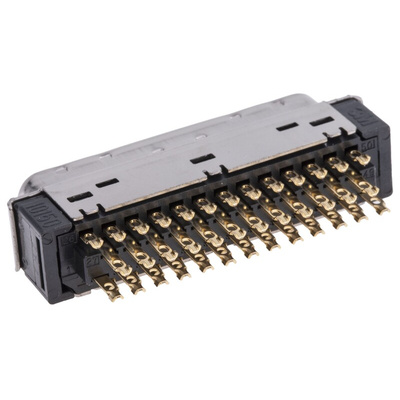

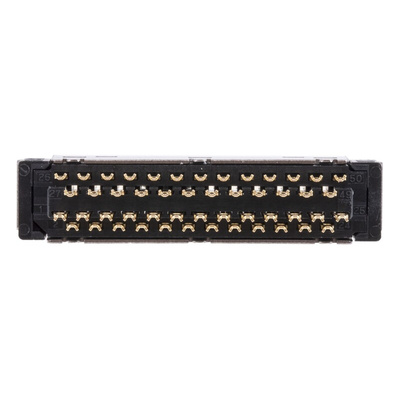

• Solder cup termination method eliminates the need for special installation equipment• Gold-over-nickel contact plating for corrosion resistance• Wide operating temperature range between -55°C and +105°C for use in demanding conditions• Compact dimensions of 41.1 (L) x 9.1 (W) by 19.3mm (D) to fit into small spaces

Applications

• Optical devices• Scanners• Printers• Mainframe computers

Which operating systems support SCSI?

On Windows operating systems, SCSI is supported on Windows 95, 98, ME (Millenium Edition) and XP. Older Apple Macintosh computers also provide internal support for SCSI.

Standards

MIL-G-45204

Mini Delta Ribbon (MDR)

Cable mount plugs and PCB mount receptacles with pre-loaded ribbon contacts for long life
Finger releasable latching backshells for cable mounting applications

A Mini Delta Ribbon (MDR) system designed for high density I/O applications on a 1.27mm pitch.

Datasheet
