10226-6212PL, 3M, 102 Series Female 26 Pin Straight Through Hole SCSI Connector 2.54mm Pitch, Solder, Разъем

Straight Panel Mount I/O SCSI Receptacles

Features and Benefits

• Mates with cable mounted solder plugs, series stock no. 515-7460
• Excellent EMI/ESD protection

Available in this range:

• 515-7527 is a 20 pin Panel Mount SCSI Receptacle
• 515-7533 is a 26 pin Panel Mount SCSI Receptacle
• 515-7555 is a 36 pin Panel Mount SCSI Receptacle
• 515-7561 is a 50 pin Panel Mount SCSI Receptacle
• 749-4843 is a 14 pin Panel Mount SCSI Receptacle

What is a SCSI Connector used for?

SCSI Connectors, sometimes referred to as ’Skuzee’ connectors, are used to connect computer parts that use the SCSI system. These connectors are used in a wide range of computing devices, often in hard drive interfaces. As such they are designed to provide a robust and reliable connection.

Why choose 3M?

3M is a trusted name in connector and wiring solutions, providing high quality cables, connectors and accessories. From industrial computing to domestic applications, 3M provides the reliable and versatile product range you need.

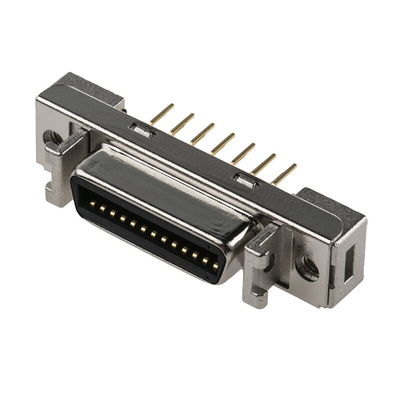

3M SCSI Connector, Zinc Alloy Housing Material, 1A Current Rating - 10226-6212PL

This female SCSI connector from 3M proves that the best things come in small packages. Compact dimensions of just 9.1 (D) x 37.2 (L) x 11mm (W) house a hefty 26 individual contacts, letting you make heavy-duty connections between your computer and peripheral devices. Thanks to 3M's sturdy wiper-on-wiper system, this is a reliably durable piece of kit you'll have no problem plugging and unplugging as often as you need.

• Screw lockdown holds it in place on the PCB
• Latch design keeps your connection stable
• Wide operating temperature range between -20°C and +85°C for use in challenging conditions

Applications

• Hospital equipment
• Telecommunications
• High-speed I/O technology

How do I install this device?

For secure and reliable mounting, this connector uses the through-hole process. This straightforward technique uses solder to fix your components in place to create tough bonds that will stand up to vibration and impact.

Standards

IDC; MIL-G-45204

Mini Delta Ribbon (MDR)

Cable mount plugs and PCB mount receptacles with pre-loaded ribbon contacts for long life
Finger releasable latching backshells for cable mounting applications

A Mini Delta Ribbon (MDR) system designed for high density I/O applications on a 1.27mm pitch.
