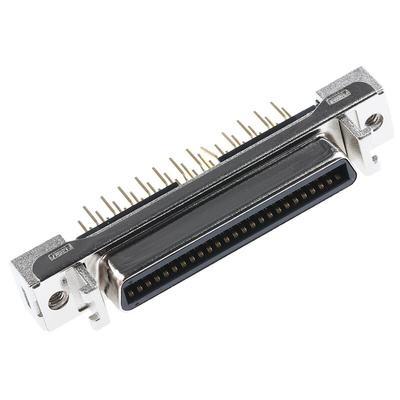

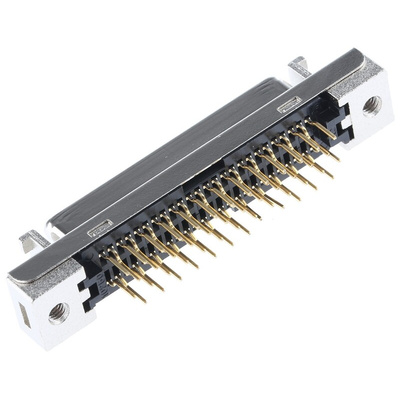

10250-6212PL, 3M, 102 Female 50 Pin Straight Through Hole SCSI Connector 2.54mm Pitch, Solder, Разъем

Straight Panel Mount I/O SCSI Receptacles

Features and Benefits

• Mates with cable mounted solder plugs, series stock no. 515-7460
• Excellent EMI/ESD protection

Available in this range:

• 515-7527 is a 20 pin Panel Mount SCSI Receptacle
• 515-7533 is a 26 pin Panel Mount SCSI Receptacle
• 515-7555 is a 36 pin Panel Mount SCSI Receptacle
• 515-7561 is a 50 pin Panel Mount SCSI Receptacle
• 749-4843 is a 14 pin Panel Mount SCSI Receptacle

What is a SCSI Connector used for?

SCSI Connectors, sometimes referred to as ’Skuzee’ connectors, are used to connect computer parts that use the SCSI system. These connectors are used in a wide range of computing devices, often in hard drive interfaces. As such they are designed to provide a robust and reliable connection.

Why choose 3M?

3M is a trusted name in connector and wiring solutions, providing high quality cables, connectors and accessories. From industrial computing to domestic applications, 3M provides the reliable and versatile product range you need.

3M SCSI Connector, 50 Pins, Solder Termination - 10250-6212PL

Use this SCSI connector from 3M to transfer data between your computers and external devices. A voltage rating of 150V AC and 200V DC makes it a good choice for use in low-power systems. As its housing is made of zinc alloy, it's resistant to corrosion and wear, to deliver long-lasting performance. A wide operating temperature range of -20°C to +85°C makes this unit suitable for use in demanding environments.

• Gold-over-nickel-plated copper alloy contacts are corrosion-resistant and highly conductive for a reliable connection
• Solder termination method for a secure attachment and reliable signal transmission

Applications

• Telecommunication systems
• Robotics
• Data and networking centres

Is this connector flame-resistant?

Yes, this connector has a UL94 V-0 rating, which means burning stops in 10 seconds to prevent the spread of flames in the event of a fire.

Standards

IDC; MIL-G-45204

Mini Delta Ribbon (MDR)

Cable mount plugs and PCB mount receptacles with pre-loaded ribbon contacts for long life
Finger releasable latching backshells for cable mounting applications

A Mini Delta Ribbon (MDR) system designed for high density I/O applications on a 1.27mm pitch.

102xx Series
