DV007004, Microchip MPLAB PM3, Development Kit

Microchip Universal Device Programmer

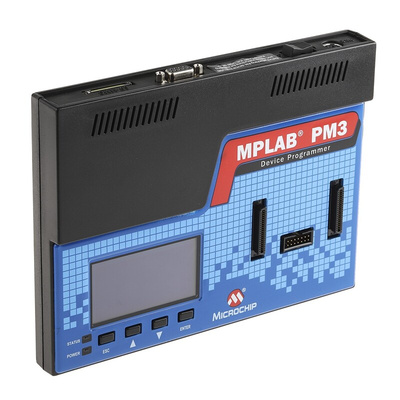

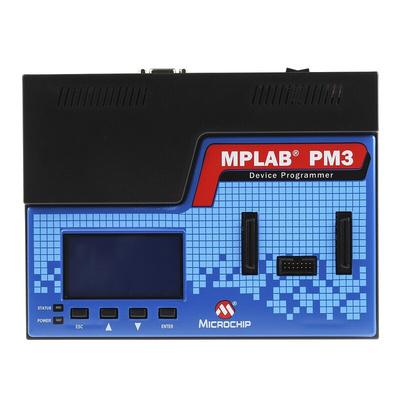

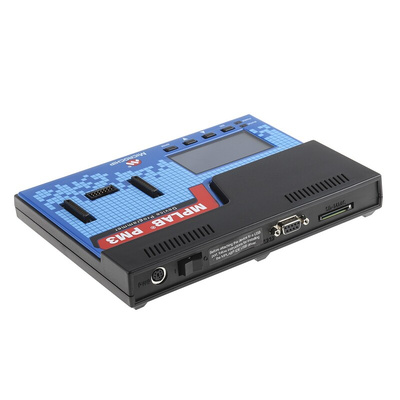

The Microchip MPLAB Pm3 universal device programmer is a brilliant and easy to use the standalone unit or PC operated device programmer. It is designed to program the Microchips range of PIC devices. This device can program the latest dsPIC DSC devices too. The interface features 3 quick easy ports (2x Socket modules and 1x ICSP connector) to allow you to program on the fly. The universal device programmer contains 3 modes: PC host for full control, stand-alone programming and safe mode to allow you to program almost anywhere at a fast pace.
Accessories:
MPLAB PM3 ICSP Cable – 667-7814
Chip Programming Adapter (AC164111) – 667-7883
What is in the box?
Supplied with the MPLAB is

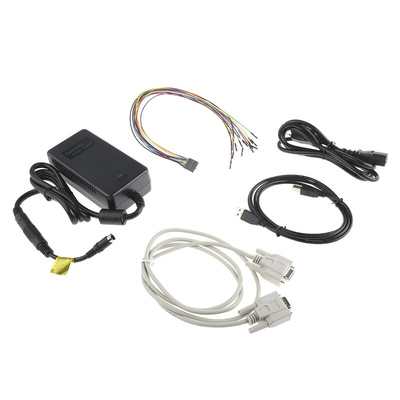

1x MPLAB PM3 unit, RS-232 cable, USB cable, ICSP cable, power supply and cables, MPLAB IDE CD, user manual and technical documentation.
Supplied with:
RS-232 cable, USB cable, ICSP cable, power supply and cables, MPLAB IDE CD, user’s manual and technical documentation on CD (Kit only)

Features and Benefits

Alternative DOS command-line interface is available for batch control
Buzzer sound for loud environments
Easily program Microchips line of dsPIC DSC and PIC devices
Easy to use interface with a built-in display
LEDs to indicate power and errors for easy diagnoses
RS-232 interface and USB
SD and Multimedia card slot for on the fly use (data can be saved and loaded)
SQTPSM serialization for programming unique serial numbers (only PC host mode)
Support for PROMATE II socket modules
