242.1693, Scame IP44 Blue Wall Mount 2P + E Right Angle Industrial Power Plug, Rated At 16A, 230 V, Разъем питания

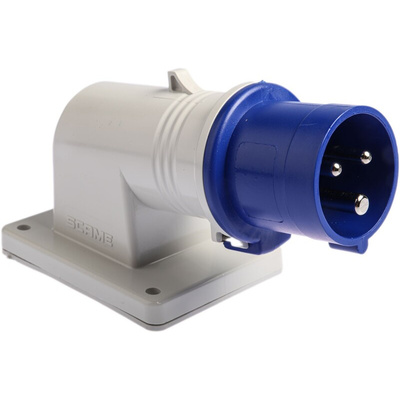

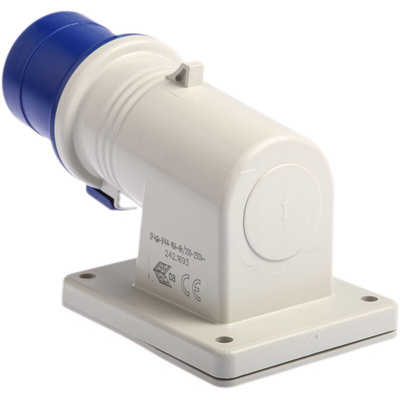

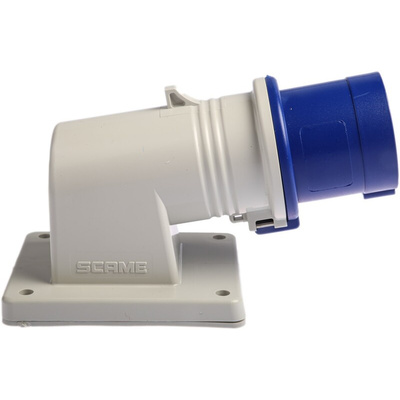

RS PRO IP44 Blue Wall Mount 2P+E Right Angle Industrial Power Plug, Rated At 16.0 A, 230.0 V

Well suited for general industrial purposes, this wall-mount power plug from the RS PRO range is right-angled for a more secure connection. It's housed in a durable high-strength plastic enclosure that's rated IP44, meaning it's protected from objects more than 1 mm in size, as well as from water splashing from all directions.

This industrial power connector is voltage rated at 230 V and current rated at 16 A. The IEC309-type 2-pin plus Earth male plug has an insulation resistance rating of 500/690 V. It can operate at temperatures ranging from -25˚C to +40˚C and has a maximum operating temperature of +60˚C.

What's more, the plug has been exhaustively tested to ensure its safety and reliability, including being glow wire tested to 650°C/850°C. This high-quality product won't damage equipment via electrostatic discharge (ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007) and contains only minimal hazardous substances (RoHS).

Features and Benefits

• Industrial power connector
• Female connector
• Wall mount
• IEC309-type 2-pin plus Earth plug
• Voltage rating of 230 V
• Current rating of 16 A
• IP rating of IP44 (splash proof)
• Impact protection rating of IK07-IK09

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS Pro Datasheet

Technical Drawing
