242.3297, Scame IP44 Red Wall Mount 3P + N + E Right Angle Industrial Power Plug, Rated At 32A, 415 V, Разъем питания

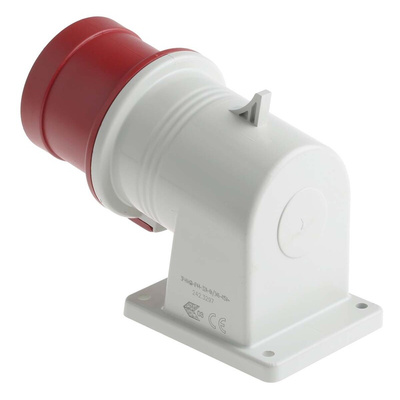

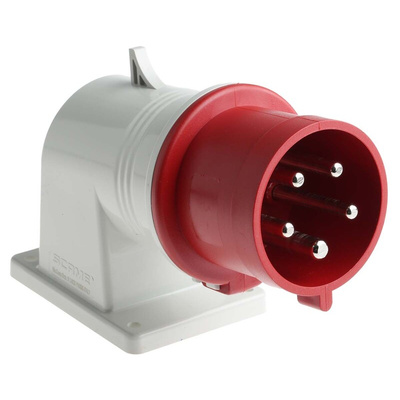

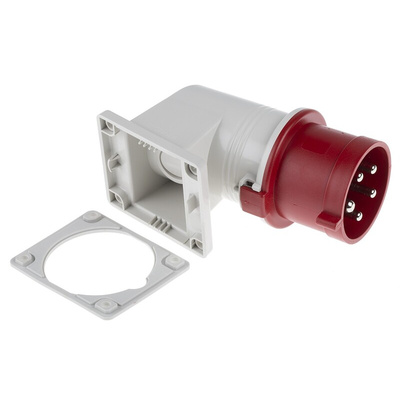

IP44 Red Wall Mount 3P+N+E Right Angle Industrial Power Plug, Rated at 32.0 A, 415.0 V

If you're looking for a reliable and hardwearing power connector for general industrial applications, this wall-mounted 415 V plug is an excellent choice. Its right-angle orientation enables a more secure connection, while the tough plastic housing offers additional protection. An IP44 rating means it can withstand splashes of water and other liquids and is protected from ingress by objects larger than 1 mm.

This appliance inlet is a heavy-duty 3-pin plus neutral plus earth male plug. Colour-coded as red, it has a voltage rating of 415 V and current rating of 32 A.

It's been exhaustively tested for safety and reliability. It meets ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007 standards, meaning it won't damage equipment through electrostatic discharge, and has been RoHS-certified as containing only minimal hazardous substances.

Features and Benefits

• Industrial power connector
• Male right-angled connector
• Wall mounting
• 3-pin plus neutral plus earth plug
• Voltage rating of 415 V
• Current rating of 32 A
• High-strength plastic housing
• Working frequency of 50 Hz to 60 Hz
• IP44 rated as splash proof
• Conforms to Electrostatic Control Standards ANSI/ESD S20.20:2014 and BS EN 61340-5-1:2007
• RoHS-compliant as containing minimal hazardous substances

Datasheet 242.3297
