RS PRO Pressure Switch, 0bar Min, 10bar Max, Analogue Output, Gauge Reading, Регулятор давления

RS PRO Gas, Liquid Gauge Pressure Switch, Analogue 0 → 10 bar, 10 → 30 V DC, G1/4 process connection

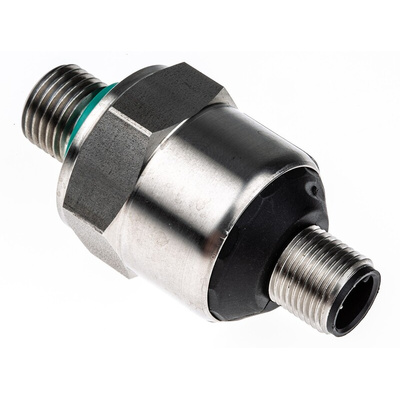

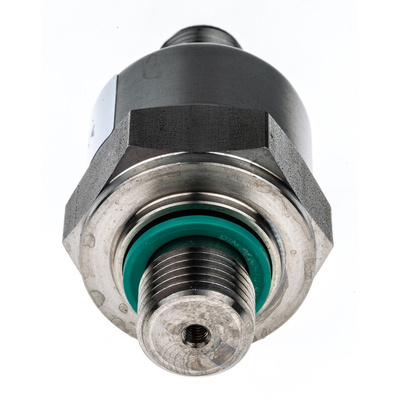

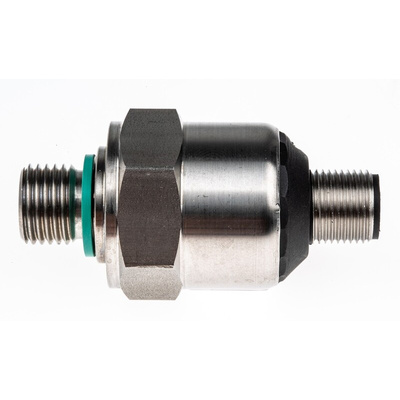

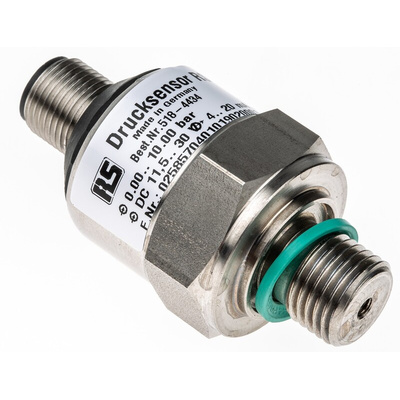

This robust pressure switch from the trusted RS PRO range is made to measure pressures of 0 bar to 10 bar in liquid and gaseous media. It's suitable for use in various industrial applications, like in the medical, aviation, automotive and marine fields.

The product uses a piezo-resistive strain gauge sensor, which converts pressure into a linearly-proportional analogue electrical signal of between 4 mA and 20 mA. It's enclosed within a stainless steel housing and has an operational temperature range of -20°C to +125°C. There's a 1/4-inch threaded connector to attach to a panel or housing so the sensor comes into contact with the medium.

Electrical connections to the switch are made using a four-pin M12 connector. The sensor is powered by a DC voltage of between 10 V and 30 V, so it can use a number of different power sources.

Features and Benefits

• Pressure switch
• Measurement of gas and liquid media
• Not front-flush mounting
• Accuracy of ≤ 0.5%
• Pressure reading range of 0 bar to 10 bar
• Response time of ≤ 3 ms
• Electrical connection using M12 connector
• G1/4 process connection
• Operational temperature range of -20°C to +125°C
• Supply voltage of 10 V to 30 V DC
• Analogue current output of 4 mA to 20 mA
• Housing of 303 stainless steel material
• IP rating of IP67

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
