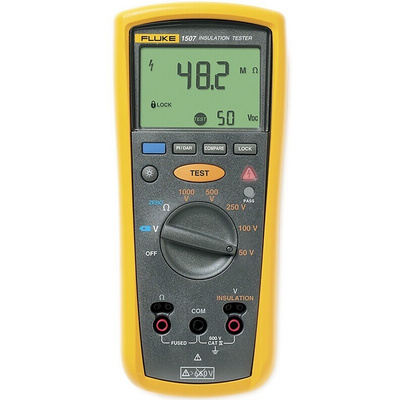

Fluke 1507, Insulation Tester, 1000V, 10GΩ, CAT III 600V, Измеритель сопротивления изоляции

Fluke 1500 Series Electrical Insulation Testers

Fluke 1507 (10 GΩ) and 1503 (2 GΩ) electrical insulation testers are compact, rugged, reliable and easy-to-use. Their multiple test voltages make them instruments of choice for troubleshooting, commissioning and preventative maintenance applications. The remote probe helps save time and money when performing tests.

Features & Benefits

Insulation test range 0.01 MΩ to 10 GΩ (1507), 0.1 MΩ to 2 GΩ (1503)Insulation test voltages 500 V, 1000 V (1503 only), 50 V, 100 V, 250 V (both models)Automatic calculation of Polarisation Index and Dielectric Absorption Ratio (1507)Compare (Pass/Fail) function (1507)Repetitive or hard-to-reach testing easy with the remote test probeFor added user protection, live circuit detection prevents insulation test if voltage > 30 V is detected Auto-discharge of capacitive voltage for added user protectionAC/DC voltage 0.1 V to 600 V200 mA continuityResistance 0.01 Ω to 20.00 kΩAuto power offLarge, backlit displayCAT IV 600 V overvoltage category ratingRemote probe, test leads, probes and alligator clips included with each testerAccepts optional Fluke TPAK magnetic hanging systemFour AA alkaline batteries (NEDA 15 A or IEC LR6) for at least 1000 insulation te

Supplied with

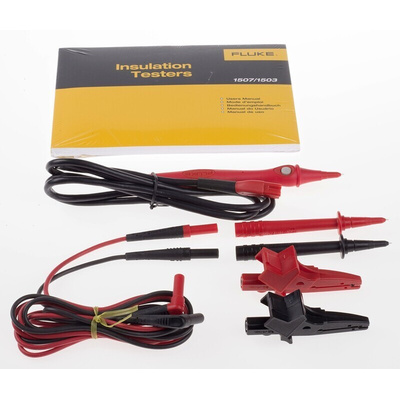

Remote probe, test leads, test probes, alligator clips, holster, user documentation

Fluke Insulation Tester

The Fluke 10G ohm electrical insulation tester is compact, rugged, reliable and easy to use. The multiple test voltages make it an instrument of choice for troubleshooting, commissioning and preventative maintenance applications. It easily and quickly performs advanced insulation resistance testing. The remote probe helps to save time and money when performing tests. The testing voltage of this tester ranges between 50V and 1000V. This device is battery powered and has 4 AA battery type.

Features and Benefits

Accepts optional fluke TPAK magnetic hanging system
Auto discharge of capacitive voltage for added user protection
Auto power OFF
Automatic calculation of polarisation index and dielectric absorption ratio
Compare (Pass/Fail) function
For added user protection, live circuit detection prevents insulation test if voltage > 30V is detected
Insulation test ranges between 0.01MΩ and 10GΩ
Large, backlit display
Live circuit detection prevents insulation test when voltages is above 30V
Remote test probe for rapid testing
Repetitive or hard-to-reach testing easy with the remote test probe

Applications

Advanced industrial applications

Certifications

ANSI/ISA 82.02.01
CAT III 600V
CAT IV 600V
CE certified
CSA certified
IEC/EN 61010-1
IP40 rated
