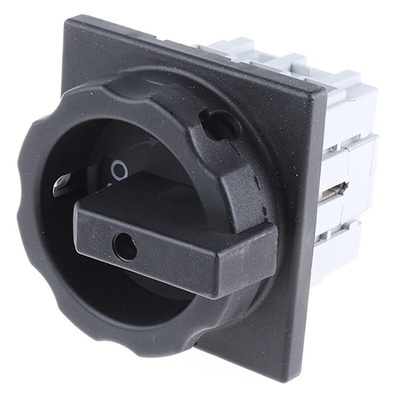

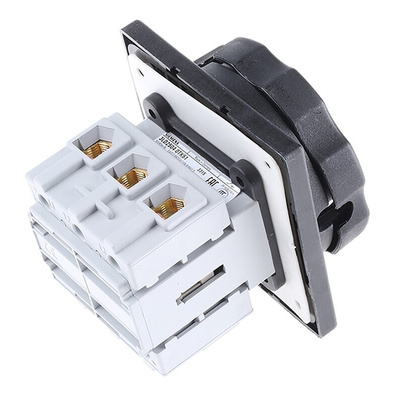

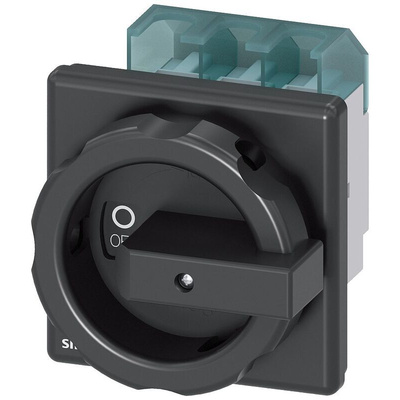

3LD2504-0TK51, Siemens 3P Pole Panel Mount Isolator Switch - 63A Maximum Current, 22kW Power Rating, IP65

Siemens Isolator Switch, 690V AC Supply Voltage, 106mm Length - SENTRON Series - 3LD2504-0TK51

Give yourself the means to cut off the power supply in your industrial setup with this isolator switch from Siemens. As it acts as either a main switch, disconnector or safety switch, you're not screwed down by single application use, making it a versatile choice. It's ideal for three-phase electrical operations that demand high energy, thanks to its 690V AC voltage rating. Panel mount this unit in a front-facing style for swift actuation. Then, to break your circuit, simply turn the handle by hand.

Features & Benefits

• 22kW power rating offers high output for your industrial applications
• Compact dimensions of 106 (L) x 90 (W) x 110.5mm (D) mean it's space-efficient
• IP65 rating indicates it's completely dust-tight and resistant to low-pressure water jets from all directions

Does the switch have any additional safety features?

The unit accommodates up to three padlocks to make it more secure and to boost safety in your workplace.

Can I use this device in harsh industrial environments?

Yes. A broad operating temperature between -25°C and +55°C makes it suitable for use in demanding workplaces.
