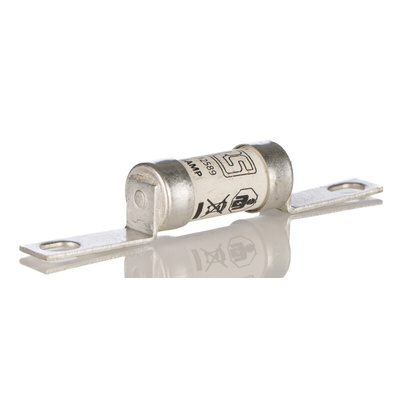

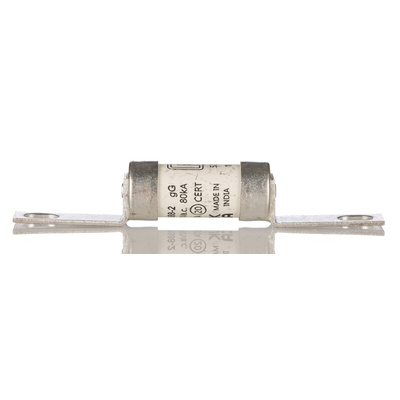

RS PRO 16A British Standard Fuse, A2, 550V ac, 73mm

RS PRO 16 A British Standard Fuse, A2, 550 V AC, 73.5 mm

Protect your circuits from shorting-out with this British Standard fuse from the RS PRO range that will protect against high currents. This fuse is size 2 A. It's gG rated so it's a general-purpose fuse, and will typically blow within 0.1 to 0.2 seconds at ten times the rated current and from two to five seconds at five times the rated current.

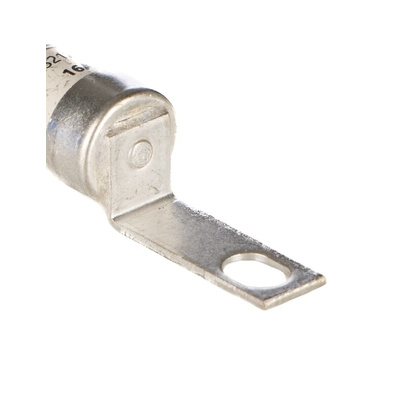

The fuse is bolted for easy mounting and securing to your fuse holder. With a current rating of 16 A, it also has a voltage rating of 550 V AC. Thanks to its high rupturing capacity, if a short circuit does occur, it will withstand the high pressure created.

Part of the RS PRO series, this British standard fuse has been stringently tested by leading engineers. It's suitable for use in many domestic appliances and it's compliant with BS 88 and IEC 60269 specifications for British standard fuses.

Features and Benefits

• Body length of 35.5 mm
• Overall length of 85 mm
• Body height of 58.5 mm
• Body diameter of 13.7 mm
• Fixing centres at 73.5 mm
• Voltage rating of 550 V AC
• A2 fuse size
• Current rating of 16 A
• General-purpose (gG) fuse
• High rupture capacity
• Bolted tags
• British Standard 88 and IEC 269 compliant

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS Pro Datasheet
