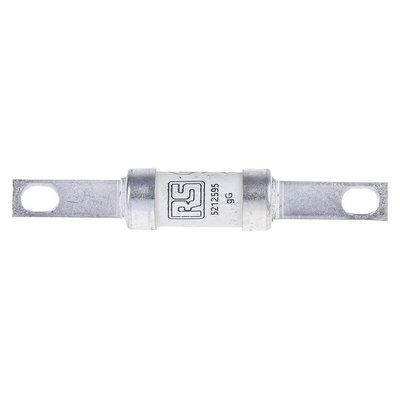

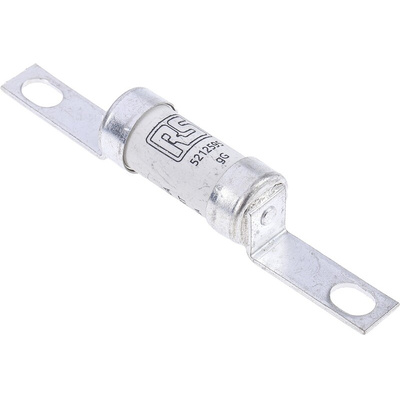

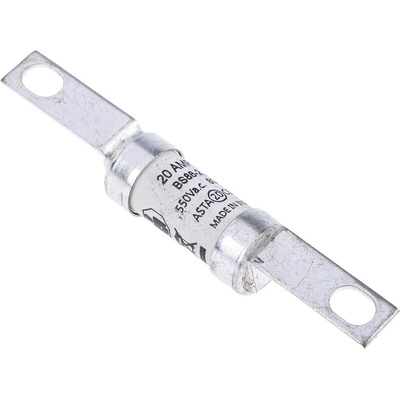

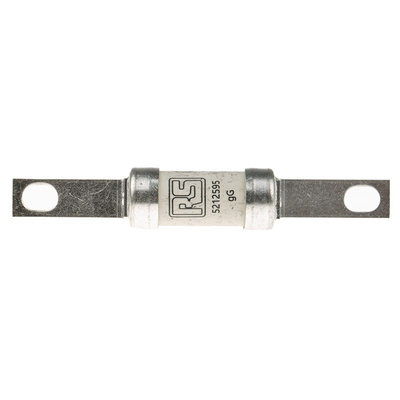

RS PRO 20A British Standard Fuse, A2, 550V ac, 73mm

RS PRO 20 A British Standard Fuse, A2, 550 V AC, 73.5 mm

Choose this British Standard fuse from the RS PRO range for an easy-to-fit unit that will guard your circuits against shorting because of high currents. You can secure it easily and mount it into your fuse holder as it has integral bolts.

This fuse has a current rating of 20 A and a voltage rating of 550 V AC. The size is 2A. It will self-rupture so can stand up to the high pressure developed during short-circuiting. With a gG rating (general purpose), it's efficient, taking between two to five seconds at five times the rated current to blow, and between 0.1 to 0.2 seconds at ten times the rated current.

Engineers have stringently tested this British standard fuse to ensure durability and consistency. BS 88 and IEC 60269 compliant, it meets the specifications for British standard fuses and can be used in all kinds of domestic appliances.

Features and Benefits

• Body length of 35.5 mm
• Overall length of 85 mm
• Body height of 35.5 mm
• Body diameter of 13.7 mm
• Fixing centres at 73.5 mm
• Voltage rating of 550 V AC
• A2 fuse size
• Current rating of 20 A
• General purpose (gG) fuse
• High rupture capacity
• Bolted tags
• BS 88 and IEC 269 compliant

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
