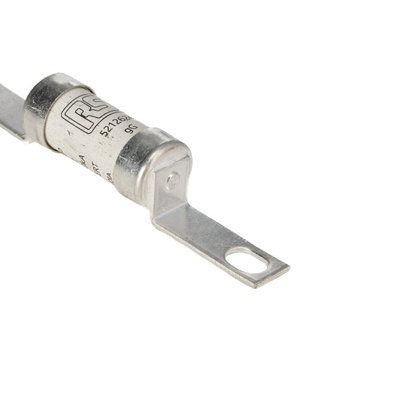

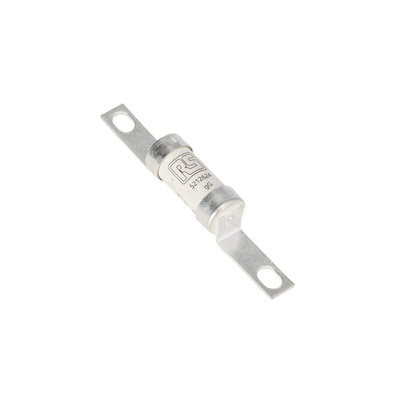

RS PRO 32A British Standard Fuse, A2, 550V ac, 73mm

RS PRO 32 A British Standard Fuse, A2, 550 V AC, 73.5 mm

This British Standard fuse from the RS PRO range protects your circuits against high currents to prevent short-circuiting. The 2A size fuse has bolts so it can be easily secured and mounted to a fuse holder.

As this fuse is gG rated for general use, it will typically blow within two to five seconds at five times the rated current, and within 0.1 to 0.2 seconds at ten times the rated current. This fuse has a current rating of 32 A and voltage rating of 550 V AC. It also has a high rupturing capacity so it can withstand the high pressure developed during a short-circuiting scenario.

Part of the RS PRO series, this British standard fuse has been thoroughly tested to ensure durability and performance. It's also compliant with BS 88 and IEC 60269 specifications for British standard fuses and can be used in all kinds of domestic appliances.

Features and Benefits

• Body length of 35.5 mm
• Overall length of 85 mm
• Body height of 35.5 mm
• Body diameter of 13.7 mm
• Fixing centres at 73.5 mm
• Voltage rating of 550 V AC
• A2 fuse size
• Current rating of 32 A
• General purpose (gG) fuse
• High rupture capacity
• Bolted tags
• BS 88 and IEC 269 compliant

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS Pro Datasheet
