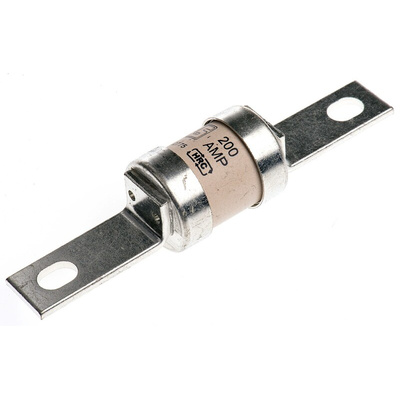

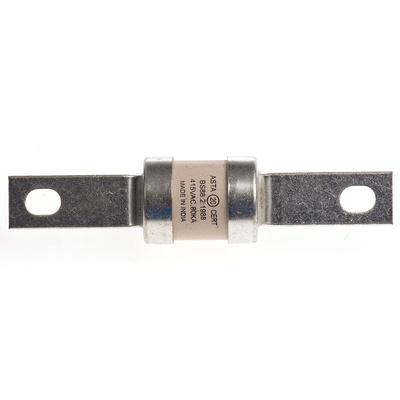

RS PRO 200A British Standard Fuse, B2, 415V ac, 111mm

RS PRO 200 A British Standard Fuse, B2, 415 V AC, 111 mm

Ensure your electrical circuits are operating safely and reliably with these fuses from RS PRO. They reduce the risk of damage to your electrical devices from power surges and short circuits. For enhanced protection, these components have a high rupture capacity (HRC), which means they can handle high currents for a short, designated period without blowing.


These fuses are unlikely to deteriorate over time, so you won't need to change them often. In the event of a fault, they have a quick reaction time for guaranteed overcurrent protection.


Use these fuses for general-purpose electrical equipment and to protect car wiring circuits and transformers. They've been tested for quality and safety and meet ASTA 20 (Association of Short-Circuit Testing Authorities) standards for low-voltage fuses.

Features and Benefits

• gG application category


• Body dimensions of 31 (diameter) x 47 (height) x 47 mm (length)


• Current rating of 200 A


• Fixing centres of 111 mm


• Fuse dimensions of 31 x 136 mm


• B2 fuse size


• BS 88, IEC 269 fuse standard


• High rupture capacity


• Overall length of 136 mm


• Bolted tag type


• Tag width of 19 mm


• Voltage rating of 415 V AC

RS Pro Datasheet
