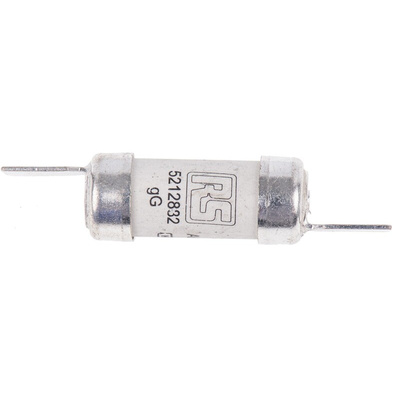

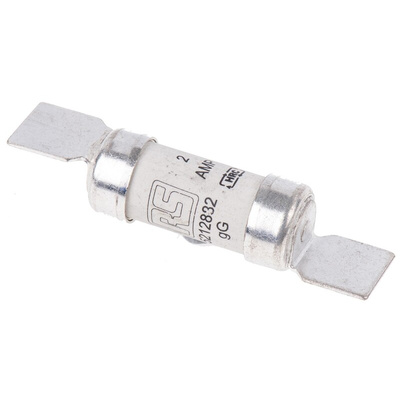

RS PRO 2A British Standard Fuse, F1, 550V ac

RS PRO 2 A F1 British Standard Fuse - HRC, gG, 550 V AC

This F1-size fuse from RS PRO protects your electrical system against short circuits and power surges. It's an HRC (high rupture capacity) fuse, meaning it can handle short bursts of high-voltage current without risking damage to your electrical devices.


The fuse has a blade tag extending from the ends of its cap for mounting to a holder. As it's designed to hold up well over time, you're unlikely to need to change your fuses frequently. Should a fault occur in your electrical system, the fuse will react quickly for improved reliability.


Fuses of this type are used to protect circuits in cars and other vehicles as well as in motors and transformers. It meets ASTA 20 (Association of Short-circuit Testing Authorities) quality and safety standards for low-voltage fuses.

Features and Benefits

• gG application category


• Body dimensions of 13.8 (diameter) x 34.6 (height) x 34.6 mm (length)


• Current rating of 2 A


• Fixing centres of 73.5 mm


• Fuse dimensions of 13.8 x 58.5 mm


• F1 fuse size


• BS 88, IEC 269-1 fuse standard


• High rupture capacity


• Overall length of 58.5 mm


• Blade tag type


• Tag width of 12.7 mm


• Voltage rating of 550 V AC

RS Pro Datasheet
