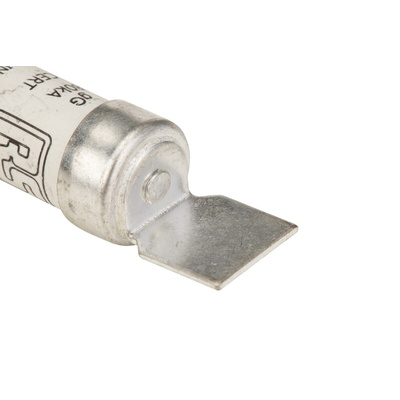

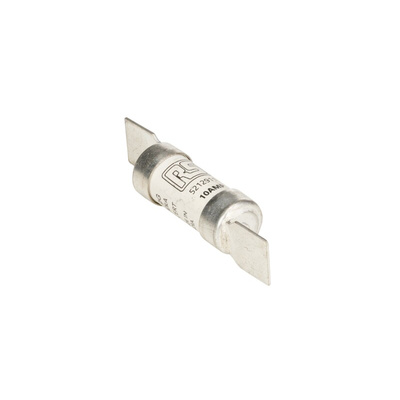

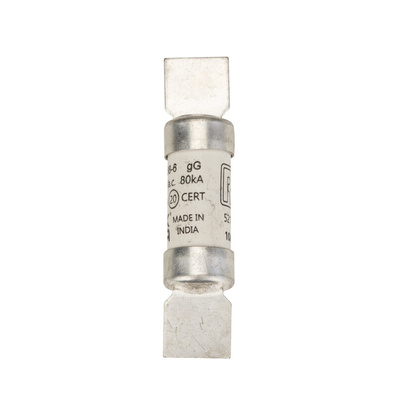

RS PRO 10A British Standard Fuse, F1, 550V ac

RS PRO 10 A F1 British Standard Fuse - HRC, gG, 550 V AC

Need to prevent short circuiting? This British Standard fuse from the RS PRO range in size 1F protects your circuits against high currents. The fuse has blades so you can easily secure and slot it into a fuse holder.

This fuse has a current rating of 10 A and voltage rating of 550 V AC. It features a high rupturing capacity so will withstand the high pressure developed during a short-circuiting situation. It's gG rated (general usage) and will typically blow within two to five seconds at five times the rated current, and within 0.1 to 0.2 seconds at ten times the rated current.

Part of the RS PRO range, this British standard fuse has been thoroughly tested to ensure durability and performance. It complies with BS 88 and IEC 60269 specifications for British standard fuses and can be used in all types of domestic appliances.

Features and Benefits

• Body length of 34.6 mm
• Overall length of 58.5 mm
• Body height of 35.5 mm
• Body diameter of 13.8 mm
• Voltage rating of 550 V AC
• F1 fuse size
• Current rating of 10 A
• General purpose (gG) fuse
• High rupture capacity
• Bladed tags
• BS 88 and IEC 269-1 compliant

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS Pro Datasheet
