RS PRO 32A British Standard Fuse, F1, 550V ac

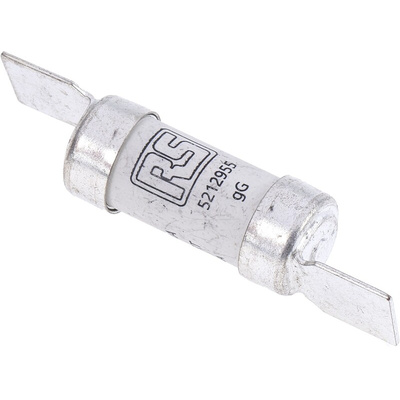

RS PRO 32 A F1 British Standard Fuse – HRC, gG, 550 V AC

Avoid the dangers of short-circuiting with this British Standard HRC (high rupturing capacity) fuse from the RS PRO range. This 32 A fuse will protect your circuits against the high currents that cause shorting. The 1F-size fuse is bladed in design, so it slots easily into your fuse holder.

The fuse has a current rating of 32 A and a voltage rating of 550 V AC. As it's gG rated for general use, it will typically blow within two to five seconds at five times the rated current, and within 0.1 to 0.2 seconds at ten times the rated current. Because it's high-rupturing, it will withstand the high pressure developed during short-circuiting.

Part of the RS PRO series, this British standard fuse has been stringently tested. Compliant with BS 88 and IEC 60269, it meets the specifications for British standard fuses. Use it for all types of domestic appliances

Features and Benefits

• Body length of 34.6 mm
• Overall length of 58.5 mm
• Body height of 34.6 mm
• Body diameter of 13.8 mm
• Voltage rating of 550 V AC
• F1 fuse size
• Current rating of 32 A
• General purpose (gG) fuse
• High rupture capacity
• Blade tags
• BS 88 and IEC 269 compliant
