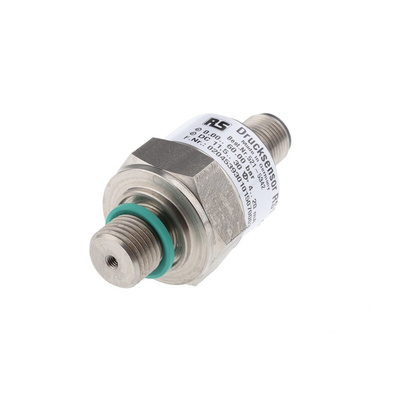

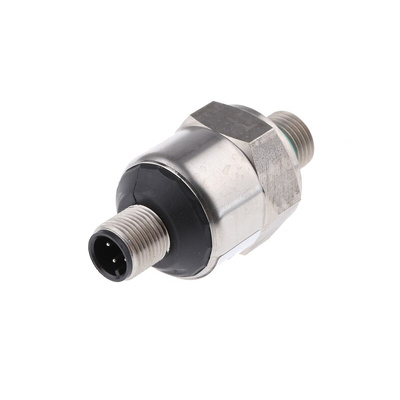

RS PRO Pressure Switch, 0bar Min, 60bar Max, Analogue Output, Gauge Reading, Регулятор давления

RS PRO Gas and Liquid Gauge Pressure Switch, Analogue, 0 Bar to 60 Bar, 10 V DC to 30 V DC, G1/4 Process Connection

Need to measure the output pressure of liquids and gases? Choose this pressure gauge from RS PRO. It's often used on storage tanks for checking whether a pump is working properly, or on filters for gauging the amount of pressure exiting a system.


The switch can withstand use in harsh environments and is resistant to abrasive chemicals thanks to its stainless steel housing. For improved efficiency, it has a fast response time that provides nearly instant pressure readings. Its Ingress Protection (IP) rating of IP67 means it's protected against dust and is highly water-resistant.


This versatile unit is suitable for use across a broad temperature range of -20°C to +125°C. You can use a pressure gauge like this one for monitoring pressure-powered machines for pressure changes or leaks.

Features and Benefits

• Accuracy of ≤0.5%


• Analogue output of 4 mA to 20 mA


• Electrical connector size of M12


• Stainless steel housing


• Ingress Protection (IP) rating of IP67


• Operating temperature range of -20°C to +125°C


• Pressure reading range of 0 bar to 60 bar


• Gas and liquid media measured


• Not front-flush mounting


• Analogue output type


• Gauge pressure reading type


• G1/4 process connection


• Response time of ≤3 ms


• Supply voltage of 10 V DC to 30 V DC

RS Pro Datasheet
