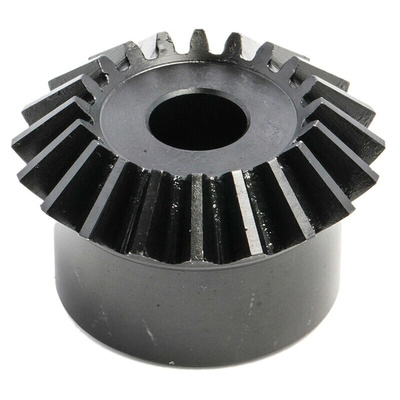

RS PRO Steel Mitre Gear, 14mm Bore, 20 Teeth, 2.5 Module

RS PRO Mitre Gears - Steel

Get your power transmission moving with RS PRO's high-quality Mitre Gears. Our extensive range of mitre gears helps provide smooth direction changes for shaft rotation, giving you the ideal solution for your application. With improved filters to help you locate the perfect gear, our mitre gears make it easy to get your system up and running quickly. Trust RS PRO Mitre Gears for all your power transmission needs.

Features and Benefits

• RS PRO metric mitre gear


• Made of hardened steel with a chemi-black finish


• Bore size of 5 mm to 16 mm


• Pitch module of 0.8


• 16 to 30 teeth


• Pressure angle of 20°


• Pitch angle of 45°


• Face angle of 48°


• Nominal gear ratio of 1:1


• Tensile strength of 569 N/mm²

Internal Bore Variants – Available Separately

• 5mm - RS stock no: 521-5803


• 8 mm - RS stock no: 521-5825, 521-5831, 521-5847


• 10 mm – RS stock no: 521-5869, 521-5875, 521-5881


• 12 mm – RS stock no: 521-5897, 521-5904, 521-5926, 521-5932


• 14 mm – RS stock no: 521-5948


• 16 mm – RS stock no: 521-5954

Applications

• Gear Shafts


• Transmissions

Note

All mitre gears are supplied as single units (i.e. not as a pair).
