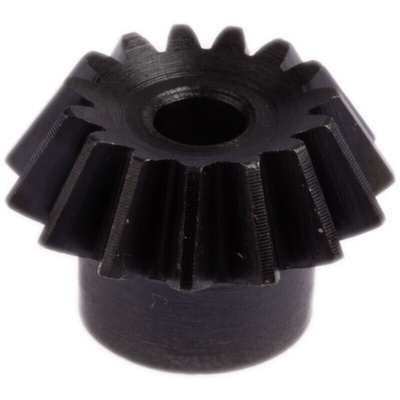

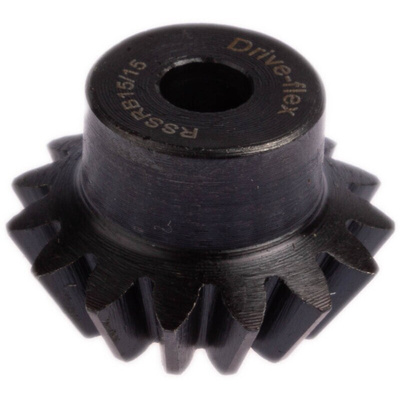

RS PRO Steel Bevel Gear, 6mm Bore, 15 Teeth, 1.5 Module

RS PRO Steel Bevel Gear, 6 mm Bore, 15 Teeth, 1.5 Module

Use this bevel gear from RS PRO to transfer motion between two shafts that are mounted at right angles to each other. A component like this is frequently used in industrial machinery such as printing presses.
The robust gear is made from steel, which is exceptionally strong to ensure a long working life. It has a black oxide surface finish to improve the hardness of the product and prevent its teeth from easily breaking. This coating also improves the corrosion resistance of the component and stops it from rusting.
You can use a bevel gear like this one in food canning and packaging machinery. It's also found in machine tools such as mills and lathes. Although it's usually mounted at a 90-degree angle, this can be adjusted to suit your particular application.

Features and Benefits

• Bore of 6 mm
• Bevel gear type
• Steel material
• Module of 1.5
• Nominal gear ratio of 2:1
• 15 teeth
• Pitch of 1.5 mm
• Pressure angle of 20º

RS Pro Datasheet
