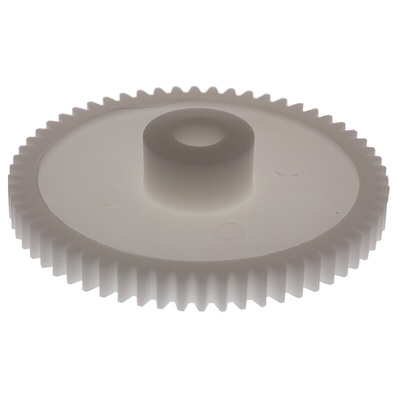

RS PRO POM 60 Teeth Spur Gear, 1 Module, 8mm Bore Diam, 60mm Pitch Diam, 18mm Hub Diam

RS PRO POM 60 Teeth Spur Gear, 1 Module, 8 mm Bore Diam, 60 mm Pitch Diam, 18 mm Hub Diam

Use this spur gear from RS PRO to reduce speed or increase torque transmission in rotating parts of industrial machinery. It has excellent wear resistance, which means you can use it for a very long time without deformation.
This component is made of injection-moulded acetal copolymer material, which combines a high level of strength with very low friction. This makes it ideal for use in operations involving constant rotational motion. It's also resistant to chemicals and corrosion, so you don't have to worry about rust or chemical abrasion.
Spur gears are a commonly used type of gear and are usually the first choice of gear to be considered. They're essential components in the manufacturing and automotive industries and are used in everything from washing machines to construction equipment.

Features and Benefits

• Made from polyoxymethylene (POM, also called polyacetal)
• Single module
• Six teeth
• Tensile strength of 94 N/mm²
• Hardness of 110-120 (Rockwell R scale)
• Face width of 6 mm
• Pitch diameter of 60 mm
• Hub diameter of 18 mm
• Bore diameter of 8 mm
• Pressure angle of 20°

RS PRO Datasheet
