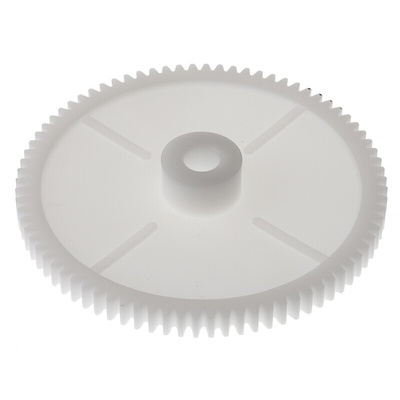

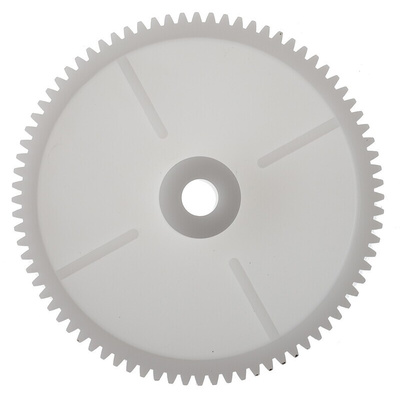

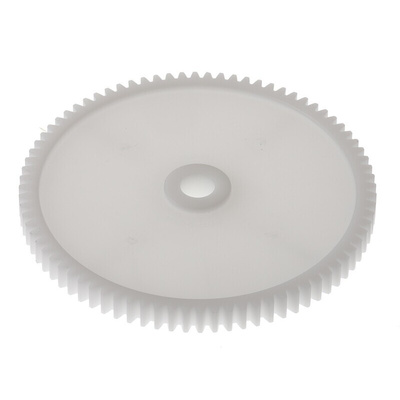

RS PRO POM 80 Teeth Spur Gear, 1 Module, 8mm Bore Diam, 80mm Pitch Diam, 18mm Hub Diam

RS PRO POM 80 Teeth Spur Gear, 1 Module, 8 mm Bore Diam, 80 mm Pitch Diam, 18 mm Hub Diam

Reduce the speed or enhance the torque transfer in the rotating components of your industrial machinery with this RS PRO spur gear. It has high wear resistance, meaning it's suitable for prolonged use without risk of deformation.
Thanks to the injection-moulded acetal copolymer material, this component has a good strength-to-friction ratio. That means it's suitable for use in applications where you need a continuous rotating motion. There's no need to worry about rust or chemical abrasion since it's chemical and corrosion-resistant.
Spur gears are a commonly used and highly preferred type of gear. You'll find them used in anything from washing machines to construction equipment. They're also essential components in the industrial and automotive sectors.

Features and Benefits

• Made from polyoxymethylene (POM, also called polyacetal)


• Single module


• Eight teeth


• Tensile strength of 94 N/mm²


• Hardness of 110-120 (Rockwell R scale)


• Face width of 6 mm


• Pitch diameter of 80 mm


• Hub diameter of 18 mm


• Bore diameter of 8 mm


• Pressure angle of 20°

RS PRO Datasheet
