RS PRO 1 POM Gear Rack, 2000mm Long , 636 Teeth , 5mm Face Width, Зубчатая рейка

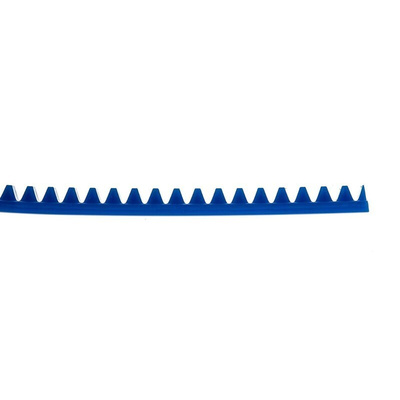

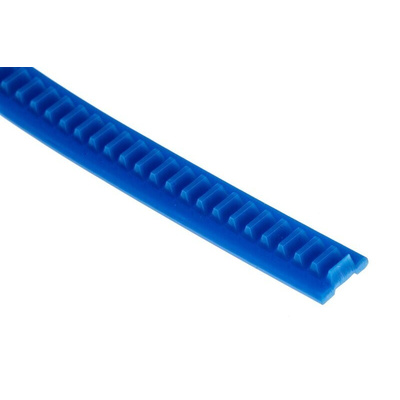

RS PRO POM Gear Rack, 2000 mm Long, 636 Teeth, 5 mm Face Width

Any time you need to translate rotational motion into linear motion, this gear rack from RS PRO is up to the job. When used in conjunction with a pinion, it can create vertical and horizontal movement, making it well-suited for use with lifting equipment.

These racks are supplied in two-metre lengths and can be easily cut to whatever size you need. They can be mounted directly onto the application surface or attached using aluminium fixing rails which are available separately. To let you achieve a customised fit, this gear rack is flexible, with a minimum bending radius of 150 mm.

Gear racks are important in applications where shaft rotation is carried out by hand or by a motor. They can also help with directional change, which makes them ideal for use in steering systems.

Features and Benefits

• RS PRO flexible gear rack
• Made from Duracon polyoxymethylene (POM)
• Overall length of 2000 mm
• Face width of 5 mm
• Pitch centre height of 0.9 mm
• 636 teeth
• Maximum operating temperature of +100°C
• Module of 1

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS Pro Datasheet
