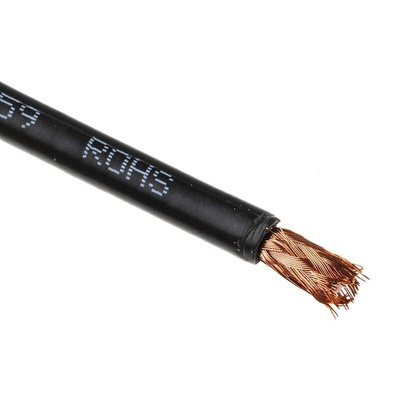

RS PRO Black Unterminated to Unterminated RG62A/U Coaxial Cable, 93 Ω, 6.07 mm O.D, 100 m

This RG62A/U coaxial cable from RS PRO is used for transmitting high-frequency signals as well as for power. Its electrical characteristics prevent drops in the voltage of the signal, making it great for computer, TV and video applications. It's unterminated so you can fit the required connectors.
The cable's copper-clad steel strands offer tensile strength and high conductivity. They're insulated with polyethylene (PE), with a low-smoke, zero-halogen (LSZH) sheath. This makes it easier for people to vacate the scene of a fire. LSZH cables are commonly used in poorly ventilated areas such as tunnels, ships and aircraft.

Features and Benefits

• Attenuation of 17.4 dB/100 m at 400 MHz, 23.9 dB/100 m at 700 MHz, 26.9 dB/100 m at 900 MHz, 28.5 dB/100 m at 1 GHz
• Coaxial cable shape
• Capacitance of 44.3 pF/m
• Characteristic impedance of 93 Ω
• RG62A/U coaxial type
• Bare copper-clad steel conductor material
• Solid conductor strand type
• Connector A is an unterminated connector type
• Connector B is an unterminated connector type
• F connector type
• PE (polyethylene) insulation material
• Length of 100 m
• Maximum operating temperature of +80°C
• Minimum operating temperature of -40°C
• One strand
• Outer diameter of 6.07 mm
• Reel length of 100 m
• Black sheath colour
• Polyvinyl chloride (PVC) sheath material
• Strand size of 22 AWG (American Wire Gauge)
• Unterminated
• Velocity ratio of 0.84
