Belden Coaxial Cable, 100m, RG62A/U Coaxial, Unterminated, Кабель

RS PRO Black Unterminated to Unterminated RG62A/U Coaxial Cable, 93 Ω 6.15 mm OD 100 m

Coaxial cables are used to carry high-frequency electrical signals with low signal losses. The RS PRO RG62A/U coaxial cable is a practical choice for use in computer, video, radio-frequency signal and broadcast applications, as its electrical characteristics prevent drops in the signal's voltage.

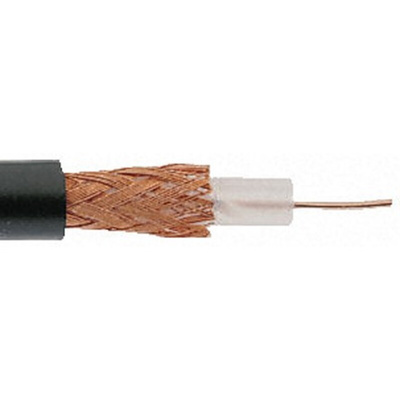

This 100-m cable comprises a solid 0.64-mm-diameter copper-clad steel inner conductor with a semi-air-spaced polyethylene (PE) dielectric and braided copper shielding. This is encased in an outer sheath made of black polyvinyl chloride (PVC) that provides effective protection in a wide range of temperatures.

This flame-retardant, low-smoke cable has an operational temperature range of -30°C to +70°C. It's RoHS compliant so contains no hazardous materials and halogen-free so it won't release toxic chemicals in case of fire. It also meets ANSI/ESC and BS EN standards for electrostatic control. The cable comes with no terminators, so you can use the connector best suited to your specific purpose.

Features and Benefits

• Unterminated RG62 coaxial signal cable
• Copper clad steel inner conductor of 0.64 mm diameter
• Braided copper shielding
• Impedance of 93 Ω
• Capacitance of 45 pF/m
• Dielectric material of PE
• Maximum frequency of 1 GHz
• Attenuation in -dB/10 m:

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.
