Belden Coaxial Cable, 500m, URM76 Coaxial, Unterminated, Кабель

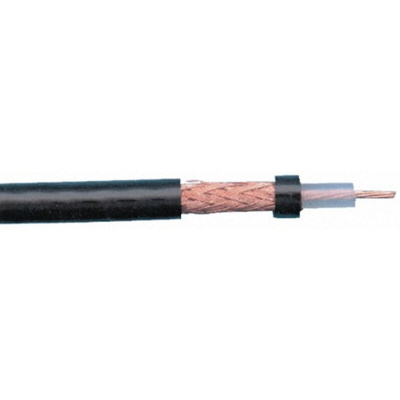

RS PRO Black Unterminated to Unterminated URM76 Coaxial Cable, 50 Ω, 5 mm O.D, 500 m

Need a reliable coaxial cable that can handle high power? This URM76 coaxial cable from RS PRO has an impedance of 50 Ω, so it's useful for carrying high voltage and high power over long runs. It's commonly used for data and wireless communication and with radio and TV transmitters.
The cable's tinned copper strands offer great conductivity along with corrosion resistance. They're insulated with a polyethylene (PE) dielectric layer and sheathed in flame-retardant polyvinyl chloride (PVC), which will help slow the spread of flames in the event of a fire.

Features and Benefits

• Attenuation of 15.5 dB/100 m at 100 MHz, 22.2 dB/100 m at 200 MHz, 39.8 dB/100 m at 600 MHz, 52.7 dB/100 m at 1 GHz
• Coaxial cable shape
• Capacitance of 98 pF/m
• Characteristic impedance of 50 Ω
• URM76 coaxial type
• Tinned copper conductor material
• Stranded conductor type
• Connector A is an unterminated connector type
• Connector B is an unterminated connector type
• A connector type
• Seven core strands of 0.3 mm
• PE (polyethylene) insulation material
• Length of 500 m
• Maximum operating temperature of +70°C
• Minimum operating temperature of -40°C
• Seven strands
• Outer diameter of 5 mm
• Reel length of 500 m
• Black sheath colour
• Polyvinyl chloride (PVC) sheath material
• Strand size of 0.32 mm
• Unterminated
• Velocity ratio of 0.66
