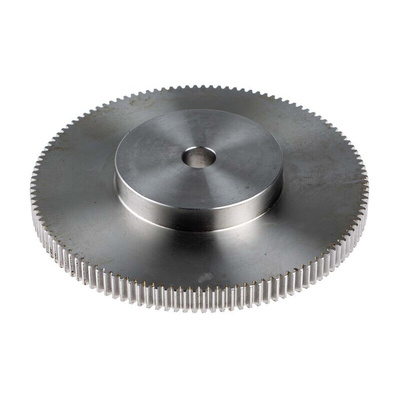

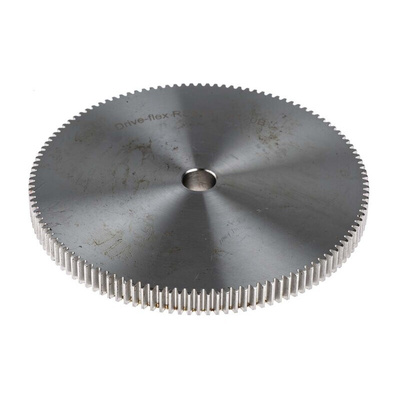

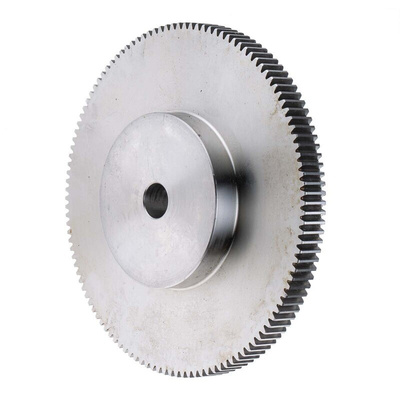

RS PRO Stainless Steel 120 Teeth Spur Gear, 1 Module, 12mm Bore Diam, 120mm Pitch Diam, 60mm Hub Diam

RS PRO Stainless Steel 120 Teeth Spur Gear, 120 mm Pitch Diam., 60 mm Hub Diam., 12 mm Bore Diam.

If you're building a gear system to combine strength and efficiency, turn to this metal spur gear from RS PRO. It's designed to provide a high level of wear resistance, so it has a longer working life. Use it in any application that involves a rack-and-pinion mechanism.

Made from 303-grade stainless steel, this spur gear offers excellent corrosion resistance. It's stronger than its plastic equivalents, meaning it can deliver a greater load-carrying capacity and heat resilience. The straight teeth allow for smoother operation between gears and permit greater mounting distances.

The gear complies with DIN (Deutsches Institut für Normung, or the German Institute of Standardisation) 867, relating to tooth profile, as well as DIN 3962 and DIN 3963, both relating to tolerances for cylindrical gear teeth. It's suitable for use in applications like metal cutting machines, fuel pumps or marine engines.

Features and Benefits

• RS PRO metric spur gear
• Made from 303-grade stainless steel
• 120 teeth
• Pitch module of 1.0
• Pitch diameter of 120 mm
• Hub diameter of 60 mm
• Bore diameter of 12 mm
• Face width of 10 mm
• Tensile strength of 510 N/mm²

RS PRO

RS PRO is our own brand range and brings you a wide range of high-quality, great value products offering you more choice. Trusted by engineers all over the world, every part of every RS PRO product has been rigorously tested against demanding industry standards
they’re only given the RS PRO Seal of Approval if we’re confident of their exceptional quality, which means you can be confident too.

RS Pro Datasheet
