1656725, Phoenix Contact, VS-08-RJ45-5-Q/IP20, Male Cat5 RJ45 Connector, Разъем

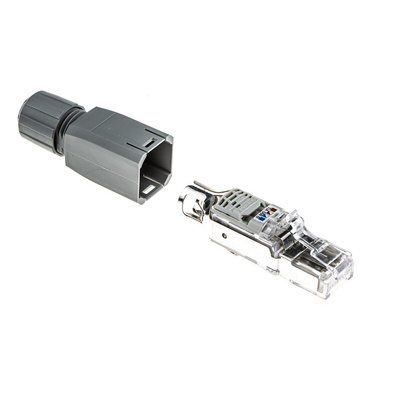

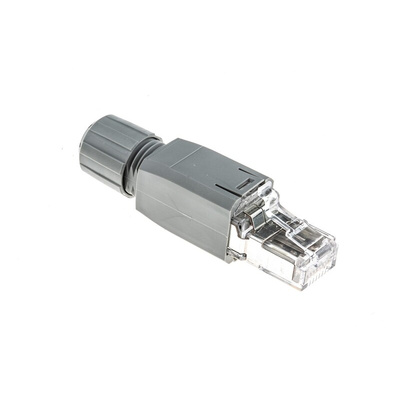

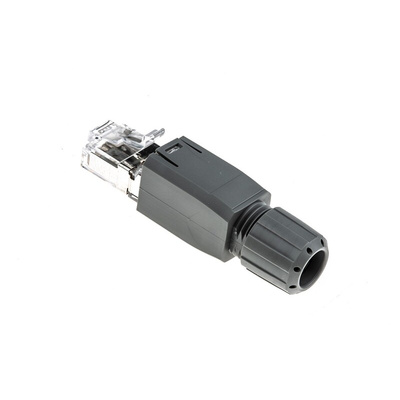

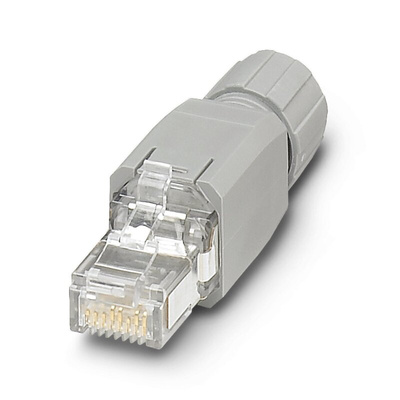

Phoenix Contact Variosub RJ45 IP20 QUICKON Plug Connector

Industrial strength RJ45 plug connector suitable for LAN CAT 5e applications. This RJ45 plug connector features QUICKON quick connect IDC technology for easy cable mounting. No specialist tools are required. The IDC connecting housing mounts to cables of 26 AWG to 23 AWG. The protective hood helps ensure a secure connection and a protection class of IP20. This RJ45 connector is also supplied with colour coding rings.

Features & Benefits

• Quick connect technology (IDC)
• Specialist tools not required
• Protective hood for IP20 protection
• Colour coded rings
• ≥ 1000 insertion/withdrawal cycles

Product Application Information

CAT 5e RJ45 connectors are used in physical network and telecommunication applications, and are commonly used to connect computers on to local area networks (LAN).

Standards

EN 50173, ISO / IEC 11801

VS-08-RJ45-5-Q/IP20 - 1656725

The VS-08-RJ45-5-Q/IP20 male, 8 position RJ45 connector has a Cat5 category which makes it suitable for fast ethernet data transmission.
No special tools are needed to fit the connectors.

Features and Benefits

• IDC fast connection
• RAL 7042 traffic grey in colour
• IP20 protection
• Transmits data safely and reliably
• Can take both rigid and flexible AWG 26-22 wires

Typical Applications

The RJ45 VS-O8 connector is designed to be used in communications & networking applications.

Datasheet 1656725
