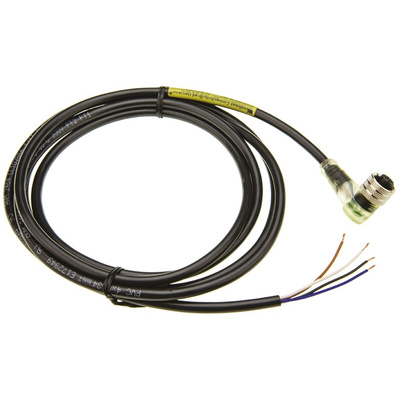

1200675014, Brad from Molex Right Angle Female 4 way M12 to Straight Unterminated Sensor Actuator Cable, 2m, Кабельная сборка

Single Ended Leads

2 metre length leads supplied in 4 or 5 way versions with straight, 90°, or 90° PNP LED connectors incorporating an M12 anti-vibration, corrosion and weld splatter resistant coupling nut. Three cable options are available:

PVC - for general purpose, low cost applications
PUR - for chemical resistance - especially to cutting and other lubricating oils
SJTO - constructed from oil and flame resistant PVC materials and a braided screen, it is physically robust and gives extended life in applications where the cable may be subject to abrasion, crushing and weld splatter
All cables have a conductor csa of 0.34mm²
See stock number 341-8016 typical for splitter boxes for details of LED function
Current Rating (A) 4 A

Brad From Molex Sensor Actuator Cable, IP67 Rating, 2m Length - 120067 Series - 1200675014

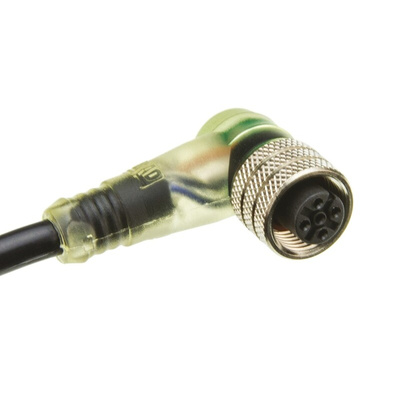

Get signals moving from A to B with this Brad from Molex sensor actuator cable. At one end, there's a standard female M12 connector with a right-angled orientation to help you slot it easily into more awkward spots. The other end's unterminated, so you can choose the right adapter for your setup. Copper alloy conductor material means you can depend on this cable for efficient signal transfer. Thanks to the robust PVC jacket, it stands up to abrasion and impact to deliver a long service life.

Features & Benefits

• 2m length gives you plenty of room to manoeuvre
• Four colour-coded cores ensure reliable transmission between devices

Applications

• Warehouses
• Healthcare facilities
• Automotive assembly plants

Is this cable waterproof?

Yes. The cable has an IP67 rating, meaning it works for at least 30 minutes while under 15cm to 1m of water. You can also be sure it's dust-proof.

BRAD - M12

80xOP1 Series Connector Data Sheet

Cable Specifications

Datasheet - 1200675014
