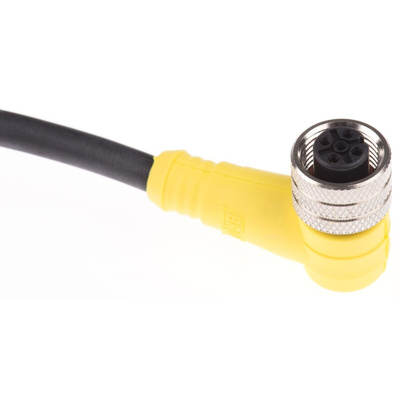

1200060663, Brad from Molex Right Angle Female 5 way M12 to Unterminated Sensor Actuator Cable, 2m, Кабельная сборка

Single Ended Leads

2 metre length leads supplied in 4 or 5 way versions with straight, 90°, or 90° PNP LED connectors incorporating an M12 anti-vibration, corrosion and weld splatter resistant coupling nut. Three cable options are available:

PVC - for general purpose, low cost applications
PUR - for chemical resistance - especially to cutting and other lubricating oils
SJTO - constructed from oil and flame resistant PVC materials and a braided screen, it is physically robust and gives extended life in applications where the cable may be subject to abrasion, crushing and weld splatter
All cables have a conductor csa of 0.34mm²
See stock number 341-8016 typical for splitter boxes for details of LED function
Current Rating (A) 4 A

Brad from Molex M12 Sensor Actuator Cable, 2m Length, PUR/PVC - 1200060663

Need to make a right-angled connection on your industrial network? Use this Brad from Molex cordset. It’s a 5-core sensor-actuator cable designed to carry electrical signals and data between automation devices. One end is fitted with a 90° M12 connector, so you can easily reach around or between equipment without straining the cable. Connections stay secure thanks to a thread-lock. The cable is made from conductive and corrosion-resistant copper alloy wires protected by a durable PUR/PVC (polyvinyl) jacket. This means it's a rugged solution for the demanding conditions found in manufacturing and assembly lines.

• Long cable length of 2m for flexibility
• Chemical-resistant fluoroelastomer O-ring for a durable seal on your connections
• Light weight of 99.29g means minimal strain on junction boxes or moving components
• Free end has colour-coded conductors for quick and safe wiring

Applications

• Test and measurement
• Agriculture
• Industrial process and control
• Robotics

Can I use this sensor-actuator cable in harsh conditions?

This sensor-actuator cable will withstand the harsh conditions present in heavy industry. It has an IP67 (ingress protection) rating to indicate it's dust-tight and waterproof. A wide operating temperature between -20°C and +80°C means you can use it in hot and cold environments such as factory floors and storage facilities.

BRAD - M12

Cable Specifications

Line Drawing - Female Plug M12 90° Angled
