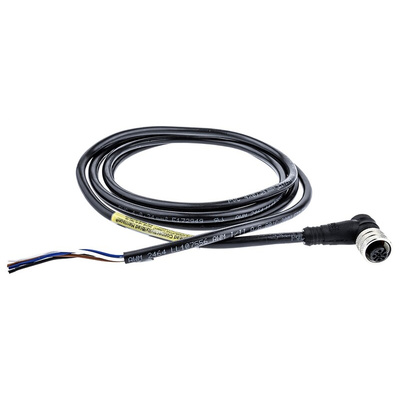

1200060021, Brad from Molex Right Angle Female 4 way M12 to Unterminated Sensor Actuator Cable, 2m, Кабельная сборка

Single Ended Leads

2 metre length leads supplied in 4 or 5 way versions with straight, 90°, or 90° PNP LED connectors incorporating an M12 anti-vibration, corrosion and weld splatter resistant coupling nut. Three cable options are available:

PVC - for general purpose, low cost applications
PUR - for chemical resistance - especially to cutting and other lubricating oils
SJTO - constructed from oil and flame resistant PVC materials and a braided screen, it is physically robust and gives extended life in applications where the cable may be subject to abrasion, crushing and weld splatter
All cables have a conductor csa of 0.34mm²
See stock number 341-8016 typical for splitter boxes for details of LED function
Current Rating (A) 4 A

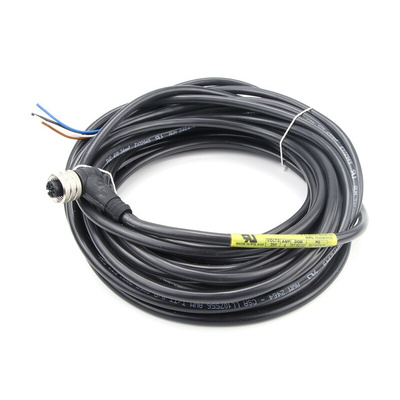

Brad from Molex M12 Sensor Actuator Cable, 2m Length, PVC - 1200060021

Use this Brad from Molex single-ended lead to make a secure connection to sensing and actuating devices. The female socket is orientated at a right angle to fit into narrow gaps or tight spaces without straining the cable. Connections are kept firmly in place thanks to the thread-lock, so the cable stays attached to equipment with moving or vibrating parts such as motors and robotic arms. An IP67 (ingress protection) rating keeps this cordset dust-tight and waterproof. That means it's safe to use in demanding manufacturing and production environments.

• Universal M12 connector with standard A-coding for compatibility with industrial networks
• PVC (polyvinyl chloride) jacket for resistance to wear, oil and corrosion
• PUR (polyurethane) connector for durability in tough conditions
• Low-halogen materials for workplace safety

Applications

• Automation and control
• Agricultural machines
• Medical and science equipment
• Automotive industry

Is this sensor actuator cable simple to install?

This sensor actuator cable has a 2m cable to give you ample length to install it with ease. It also comes with colour-coded wires to help you terminate the free end without errors.

BRAD - M12

Datasheet

Line Drawing - Female Plug M12 90° Angled
