1200060014, Brad from Molex Straight Female 4 way M12 to Unterminated Sensor Actuator Cable, 2m, Кабельная сборка

Single Ended Leads

2 metre length leads supplied in 4 or 5 way versions with straight, 90°, or 90° PNP LED connectors incorporating an M12 anti-vibration, corrosion and weld splatter resistant coupling nut. Three cable options are available:

PVC - for general purpose, low cost applications
PUR - for chemical resistance - especially to cutting and other lubricating oils
SJTO - constructed from oil and flame resistant PVC materials and a braided screen, it is physically robust and gives extended life in applications where the cable may be subject to abrasion, crushing and weld splatter
All cables have a conductor csa of 0.34mm²
See stock number 341-8016 typical for splitter boxes for details of LED function
Current Rating (A) 4 A

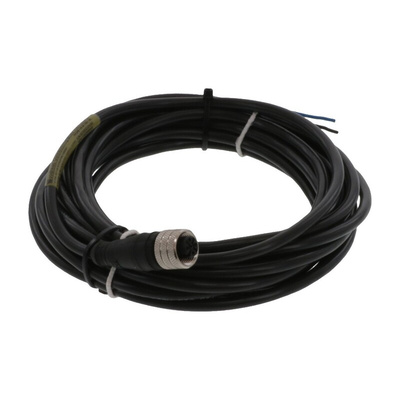

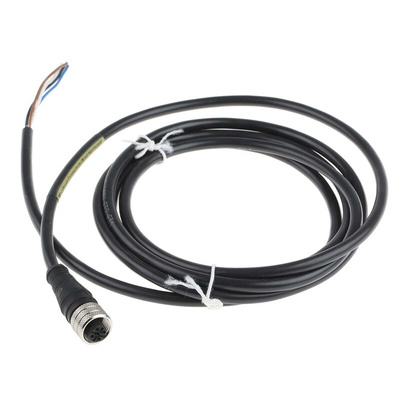

Brad from Molex M12 Sensor Actuator Cable, 2m Length, PVC - 1200060014

Reliably network your automated industrial devices with this Brad from Molex actuator cable. One end is fitted with a standard M12 female connector to plug into male sockets on equipment such as sensors and actuators. As this robust connector is made from TPU (thermoplastic polyurethane), it's strong and resistant to impact. The cable's conductive copper-alloy wires and gold-plated mating material mean signals transfer dependably between devices and controllers. A durable and chemical-resistant PVC (polyvinyl chloride) jacket keeps this wiring protected.

• IP67 (ingress protection) rating means it's dust-tight and fully waterproof for use in demanding environments
• Cable length of 2m for installation flexibility
• Wide operating temperature range between -30°C and +80°C for use in harsh conditions

Applications

• Industrial automation and control
• Manufacturing robotics
• Commercial machinery

How easy is this sensor actuator cable to connect?

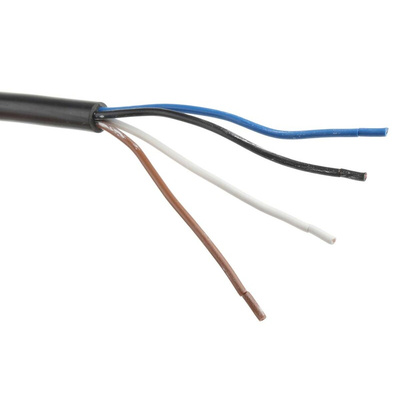

This cable is easy to hook up to your automated system. The free end has colour-coded conductors for straightforward wiring to your control device, while the female socket is a 4-pin A-coded connector. This means you can be sure it will only plug into a matching male plug.

BRAD - M12

Cable Specifications

Line Drawing - Female Plug M12 Straight

Datasheet - 1200060014
