1200060528, Brad from Molex Right Angle Male 4 way M12 to Unterminated Sensor Actuator Cable, 2m, Кабельная сборка

Single Ended Leads

2 metre length leads supplied in 4 or 5 way versions with straight, 90°, or 90° PNP LED connectors incorporating an M12 anti-vibration, corrosion and weld splatter resistant coupling nut. Three cable options are available:

PVC - for general purpose, low cost applications
PUR - for chemical resistance - especially to cutting and other lubricating oils
SJTO - constructed from oil and flame resistant PVC materials and a braided screen, it is physically robust and gives extended life in applications where the cable may be subject to abrasion, crushing and weld splatter
All cables have a conductor csa of 0.34mm²
See stock number 341-8016 typical for splitter boxes for details of LED function
Current Rating (A) 4 A

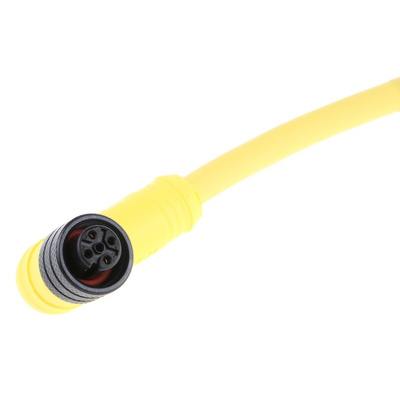

Brad from Molex Right-Angle Sensor-Actuator Cable, M12, 2m Length - 1200060528

Looking for a durable cordset to extend your industrial automation and control network? Use this Brad from Molex sensor-actuator cable to safely carry signals between your devices. It's fitted with a thread-locking M12 connector to prevent accidental disconnection. This connector is also right-angled to reduce cable strain where space is tight. A durable PVC (polyvinyl chloride) jacket keeps the wires protected from day-to-day wear and corrosion. You'll find this product useful for connecting devices such as proximity sensors, stepper motors and robotic arms.

• A-coding for compatibility with commonly-used sensor-actuator equipment
• Colour-coded conductors to simplify wiring and minimise errors
• Yellow jacket for clear visibility in hazardous environments

Applications

• Chemical industry
• Agriculture
• Transport and aviation
• Assembly lines
• Robotics

How many contacts does this sensor-actuator cable have?

This sensor-actuator cable has 4 contacts to work with 4-pin connectors.

Why does this sensor-actuator cable have a free end?

There's one free end to this cable to let you customise your connection to a terminal block, distribution box or controller. Alternatively, you can use it to attach your choice of connector.

BRAD - M12

Cable Specifications

Line Drawing - Female Plug M12 90° Angled
