1200060470, Brad from Molex Straight Male 4 way M12 to Unterminated Sensor Actuator Cable, 2m, Кабельная сборка

Single Ended Leads

2 metre length leads supplied in 4 or 5 way versions with straight, 90°, or 90° PNP LED connectors incorporating an M12 anti-vibration, corrosion and weld splatter resistant coupling nut. Three cable options are available:

PVC - for general purpose, low cost applications
PUR - for chemical resistance - especially to cutting and other lubricating oils

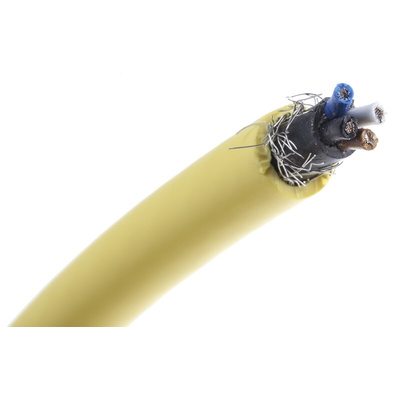

SJTO - constructed from oil and flame resistant PVC materials and a braided screen, it is physically robust and gives extended life in applications where the cable may be subject to abrasion, crushing and weld splatter
All cables have a conductor csa of 0.34mm²
See stock number 341-8016 typical for splitter boxes for details of LED function
Current Rating (A) 4 A

Brad from Molex Single-End Sensor Actuator Cable, M12, 2m Length - 1200060470

Keep your factory applications safely connected with this Brad from Molex sensor-actuator cable. This 4-core cordset carries signals between devices such as sensors and actuators in your automation and control networks. It comes with a standard M12 plug to work with common industrial systems. A locking thread keeps your connection secure, even when attached to moving parts or used in environments exposed to vibration. The cable's tough PVC (polyvinyl chloride) covering effectively protects the wires inside, to help keep you safe from electric shocks when handling it.

• A-coded connector for use with common industrial sensor, actuator and motor applications
• Unterminated on one end for customisation with your network
• Yellow outer jacket makes it visible for safety and easy identification
• Colour-coded conductors to make wiring the free end simpler and safer to carry out

Applications

• Pharmaceutical and medical systems
• Industrial automation and control
• Materials handling
• Heavy plant equipment

How long is this sensor-actuator cable?

This sensor-actuator cable has a length of 2m, so you can use it to connect devices that are set apart from each other.

BRAD - M12

Cable Specifications

Line Drawing - 1200060470
