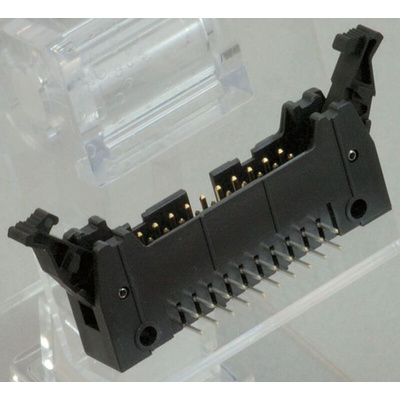

PS-50PE-D4LT2-M1E, JAE PS Series Right Angle Through Hole PCB Header, 50 Contact(s), 2.54mm Pitch, 2 Row(s), Shrouded

JAE PS-MIL Series 2.54 mm Wire to Board Ribbon Cable Header Connectors

PS-MIL series 2.54 mm header connectors that conform to MIL-DTL-83503 standard. These PS-MIL series PCB header connectors mate with PS-MIL Series 2.54 mm flat ribbon cable IDC cable sockets for use in wire to board applications. The housings of these headers feature polarization slots and keying to prevent mismating. Levers on either side of the header lock the mating socket connector securely into place. Headers with part numbers ending in ’M1E’ have a long locking lever, headers with part numbers ending in ’SM1E’ have a space saving short locking lever. These PS-MIL series 2.54 mm header connectors are available as straight or right angle mounting.

Features and Benefits

Conform to MIL-DTL-83503 standard
Polarisation slots and keying to prevent mismating
Locking levers for secure mating connection
Versions with short locking levers for space saving

PS Series MIL Type 2.54mm R/A Pin Header - Drawing
