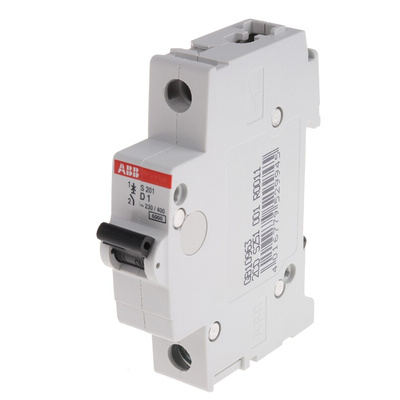

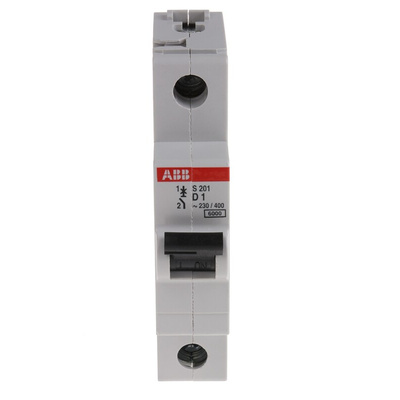

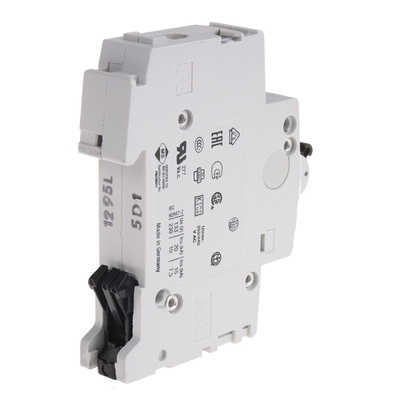

2CDS251001R0011 S201-D1, ABB System Pro M Compact S200 MCB, 1P, 1A Curve D, 253V AC, 72V DC, 6 kA Breaking Capacity

ABB S200 Series MCB, 1A, 1 Pole - S201-D1

This ABB MCB is a compact circuit breaker with a current rating of 1A. It belongs to the System Pro M compact series, offering reliability and efficiency in electrical protection. With a breaking capacity of 6kA and a compact design, this DIN rail mount circuit breaker is ideal for various applications in automation, electronics, electrical, and mechanical industries.

Features & Benefits

• Type D circuit breaker for precise tripping characteristics
• Compact size with DIN rail mount for easy installation
• Rated AC voltage of 253V and DC voltage of 72V for versatile use
• Offers overcurrent protection with delayed thermal tripping mechanism
• Electromechanic tripping mechanism for short circuit protection
• Compliance with IEC/EN standards for reliable operation

Applications

• Suitable for residential, commercial, and industrial applications
• Ideal for protecting electrical circuits in automation systems
• Used in control panels for overload and short circuit protection
• Commonly applied in electrical distribution systems
• Perfect for integration into DIN rail assemblies

Can this compact circuit breaker be used in industrial automation systems?

Yes, the ABB S201-D1 MCB is designed for industrial automation systems to provide reliable protection against overcurrents.

Will this breaker fit seamlessly into DIN rail assemblies?

Yes, the compact design of this ABB MCB allows for easy installation on DIN rails, making it a perfect choice for various applications.

Is this circuit breaker suitable for commercial electrical distribution systems?

Yes, the MCB is ideal for use in commercial electrical distribution systems to ensure efficient circuit protection.

Can this breaker be used for both AC and DC voltage applications?

Yes, the ABB MCB is rated for both AC and DC voltage, offering versatility for different electrical setups.

Is this circuit breaker compliant with international standards?

Yes, the MCB complies with IEC/EN standards, ensuring safe and reliable operation in various environments.

Standards

BS EN 60898

ABB System Pro M Single & Double Pole MCB's

Note

The Classic & System pro M product cannot be intermixed and do not share common accessories. System pro M products can only be fitted to new style Protecta distribution boards,see typically stock no. 539-1553.
