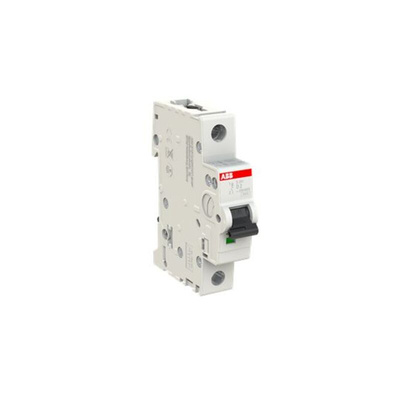

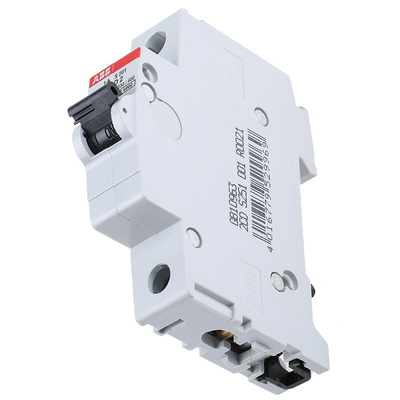

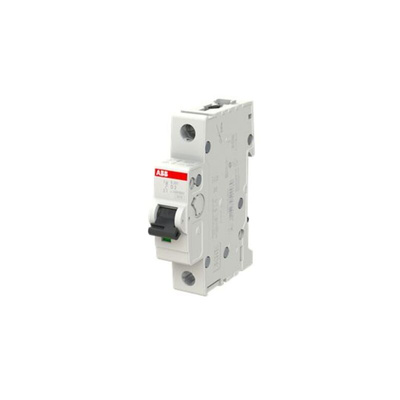

2CDS251001R0021 S201-D2, ABB System Pro M Compact MCB, 1P, 2A Curve D, 253V AC, 72V DC, 6 kA Breaking Capacity

ABB MCB, 440V Rated Insulation Voltage, 6kA Breaking Capacity - S200 Series - S201-D2

Need a line of defence against electrical faults? Pick this single-pole MCB from ABB to protect your network against short circuits and current overload. It automatically disconnects the power when the current exceeds its 2A rating, effectively preventing damage and downtime. It also boosts safety by minimising the risk of electric shocks. A type-D curve indicates it's suitable for applications with high inrush currents, like motors and transformers, as it has a relatively high trip threshold. This prevents nuisance tripping and lets your equipment get on with the job, without compromising safety.

• Compact device measuring 69 (L) x 17.5 (W) x 88mm (H) fits easily in a small enclosure
• Lightweight unit weighing 125g puts minimal strain on your installation
• Broad operating temperature range between -25°C and +55°C for use in challenging conditions

Applications

• Medical imaging systems
• UPS systems
• Winding motors

How do I mount this device?

Installation is a cinch – simply pop the unit onto a DIN rail for convenient and tool-free mounting.

Is it easy to reset this MCB?

Yes, it has a front toggle switch that clearly shows the on/off positions. Just push it up after resolving the fault.

Standards

BS EN 60898

ABB System Pro M Single & Double Pole MCB's

Note

The Classic & System pro M product cannot be intermixed and do not share common accessories. System pro M products can only be fitted to new style Protecta distribution boards,see typically stock no. 539-1553.
