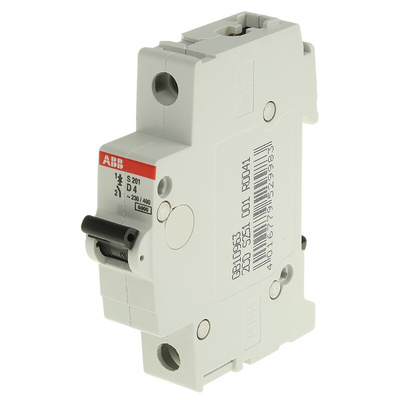

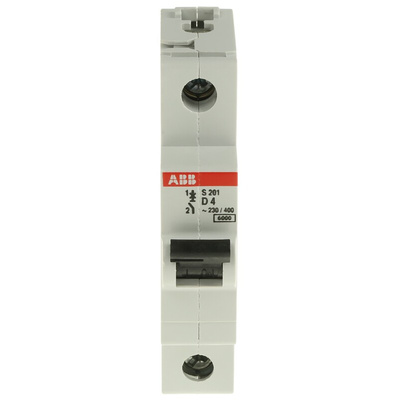

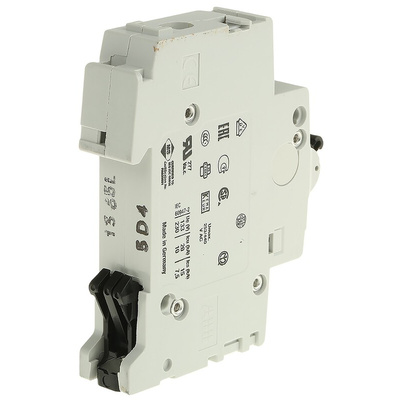

2CDS251001R0041 S201-D4, ABB System Pro M Compact S200 MCB, 1P, 4A Curve D, 253V AC, 72V DC, 6 kA Breaking Capacity

ABB MCB, Vibration-Resistant, 4kV Rated Impulse Withstand Voltage - S200 Series - S201-D4

Boost electrical safety in your setup with this MCB from ABB. When it detects a short-circuit or current overload, the unit quickly steps in, cutting the power supply to protect downstream components in the system. Type-D tripping characteristics mean the breaker trips when the current exceeds 10 to 14 times its 4A rating, making it suitable for use with heavy-duty machinery. A built-in contact position indicator shows its operating status for easy troubleshooting and status-checking.

Features & Benefits

• Low power loss of 1.7W for energy-efficient operation
• Rated impulse withstand voltage of 4kV offers a high level of electrical safety
• Front-facing toggle switch for quick resetting after a trip
• Integrated actuator marking for convenient operation
• Built-in resistance to shock and vibration for durability in demanding conditions

Applications

• Construction sites
• Agricultural machinery
• Manufacturing facilities
• Data centres

How do I mount this MCB?

You mount this MCB by simply clipping it onto a DIN rail, so no tools are necessary.

What's the breaking capacity of the MCB?

It has a high breaking capacity of 6kA, making it suitable for protecting high-power electrical systems.

Standards

BS EN 60898

ABB System Pro M Single & Double Pole MCB's

Note

The Classic & System pro M product cannot be intermixed and do not share common accessories. System pro M products can only be fitted to new style Protecta distribution boards,see typically stock no. 539-1553.
